Inspection Procedure

ACTION TEST

Inspection Procedure


WARNING:
Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:
- Fully understand the following items well before the road test;
- Precautions: Precaution For LDW/LDP System Service.
- System description for LDW: System Description.
- System description for LDP: System Description.
- Handling precaution: Precautions For Lane Departure Warning/Lane Departure Prevention.

1. CHECK LDW SYSTEM SETTING

1.Start the engine.
2.Check that the LDW system setting can be enabled/disabled on the navigation screen.
3.Turn OFF the ignition switch and wait for 30 seconds or more.
4.Check that the previous setting is saved when the engine starts again.
- GO TO 2.

2. ACTION TEST FOR LDW

1.Enable the setting of the LDW system on the navigation screen.
2.Turn warning systems switch ON (warning systems ON indicator is ON).
NOTE:
LDP system is OFF.

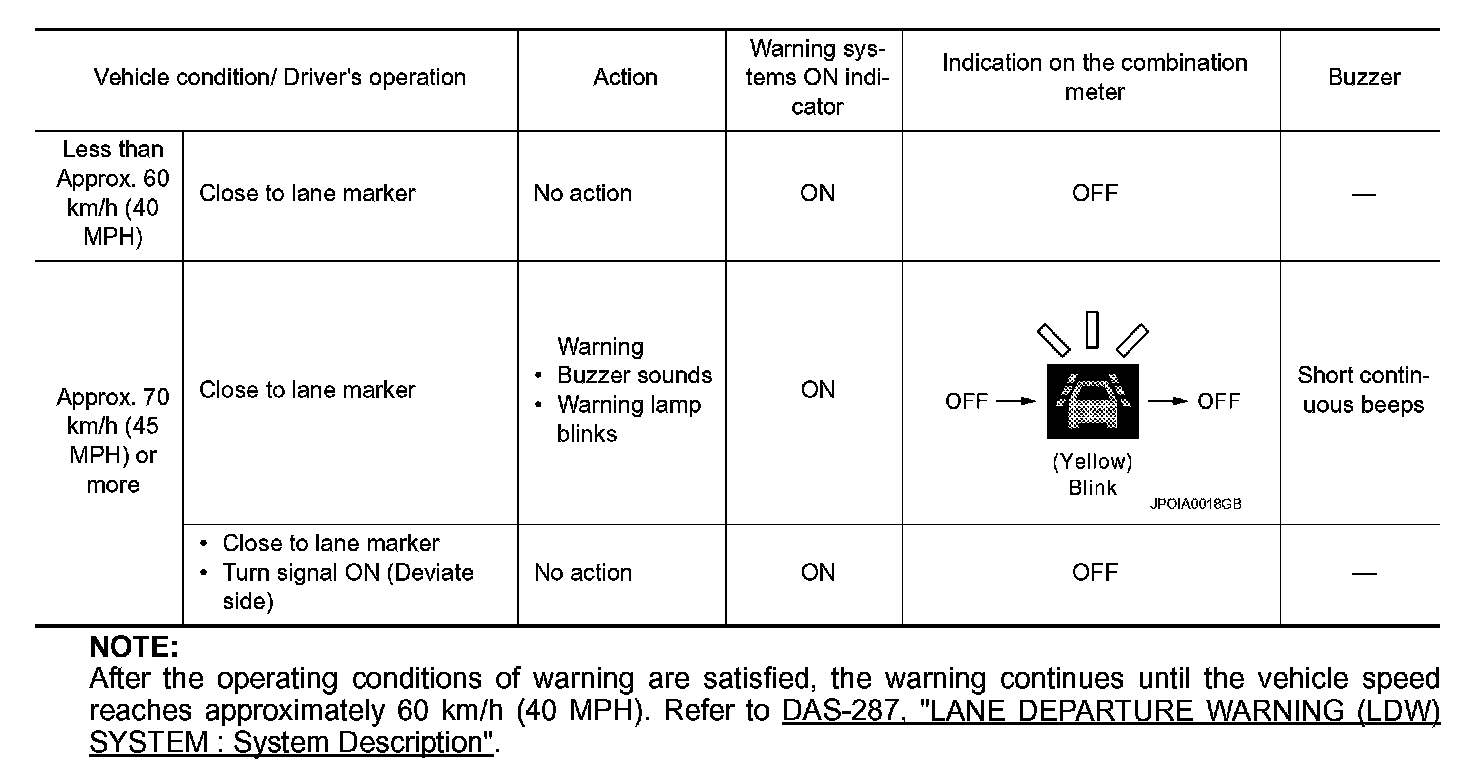

3.Check the LDW operation according to the following table.





NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (40 MPH). System Description.
- GO TO 3.

3. CHECK LDP SYSTEM SETTING

1.Start the engine.
2.Check that the LDP system setting can be enabled/disabled on the navigation screen.
3.Turn OFF the ignition switch and wait for 30 seconds or more.
4.Check that the previous setting is saved when the engine starts again.
- GO TO 4.

4. ACTION TEST FOR LDP

1.Enable the setting of the LDP system on the navigation screen.
2.Turn dynamic driver assistance switch ON (LDP ON indicator lamp is ON).
NOTE:
LDW system is OFF.
3.Check the LDP operation according to the following table.





NOTE:
After the operating conditions are satisfied, the control continues until the vehicle speed reaches approximately 60 km/h (40 MPH). System Description.
- INSPECTION END
