Right/Left Switching Signal Circuit

RIGHT/LEFT SWITCHING SIGNAL CIRCUIT

Diagnosis Procedure


1. CHECK CONNECTOR

1.Turn the ignition switch OFF.
2.Check the terminals and connectors of the side radar RH for damage, bend and short (unit side and connector side).
Is the inspection result normal?
YES- GO TO 2.
NO- Repair the terminal or connector.

2. CHECK CONTINUITY RIGHT/LEFT SWITCHING SIGNAL CIRCUIT

1.Disconnect side radar RH connector.

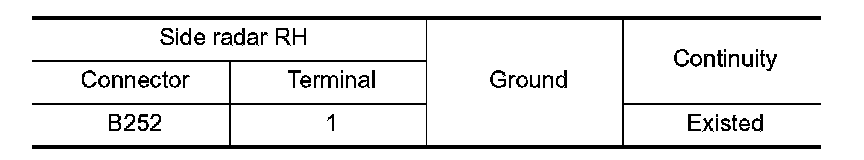

2.Check continuity between side radar RH harness connectors and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
