Side Radar RH

POWER SUPPLY AND GROUND CIRCUIT

SIDE RADAR RH : Diagnosis Procedure


1. CHECK FUSES

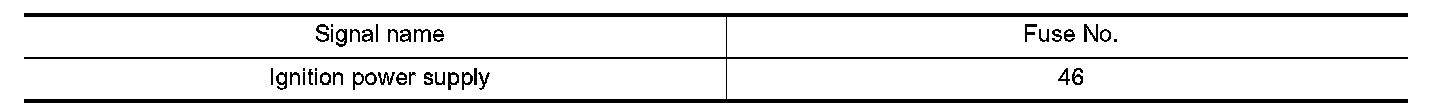

Check if any of the following fuses are blown:





Is the inspection result normal?
YES- GO TO 2.
NO- Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2. CHECK POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect the side radar RH connector.
3.Check voltage between side radar RH harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair the side radar RH power supply circuit.

3. CHECK GROUND CIRCUIT

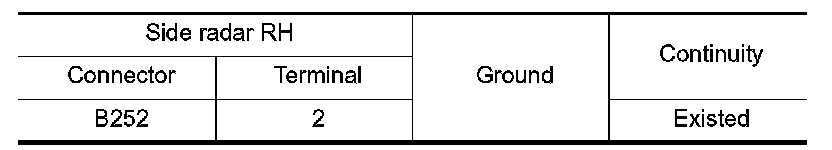

Check continuity between side radar RH harness connectors and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair the side radar RH ground circuit.
