Accelerator Pedal Actuator

POWER SUPPLY AND GROUND CIRCUIT

ACCELERATOR PEDAL ACTUATOR : Diagnosis Procedure


1. CHECK FUSES

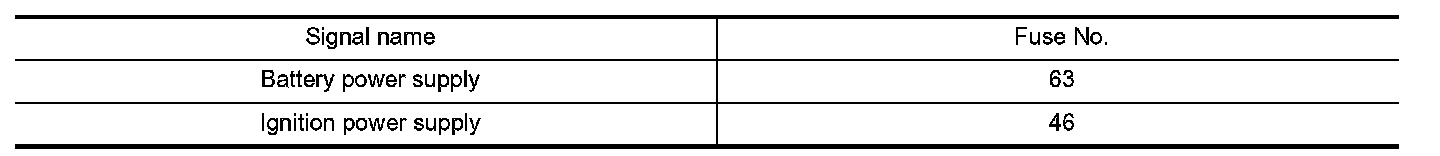

Check if any of the following fuses are blown:





Is the inspection result normal?
YES- GO TO 2.
NO- Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2. CHECK ACCELERATOR PEDAL ACTUATOR POWER SUPPLY CIRCUIT

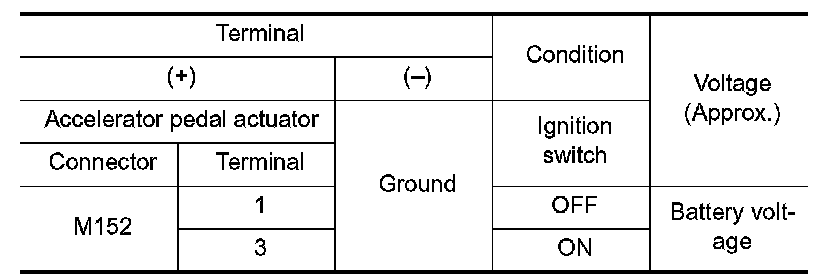

Check voltage between accelerator pedal actuator harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair the accelerator pedal actuator power supply circuit.

3. CHECK ACCELERATOR PEDAL ACTUATOR GROUND CIRCUIT

1.Turn the ignition switch OFF.
2.Disconnect the accelerator pedal actuator connector.

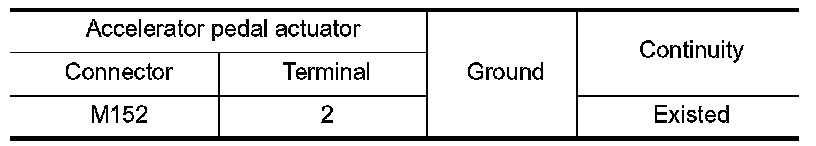

3.Check for continuity between accelerator pedal actuator harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair the accelerator pedal actuator ground circuit.
