Work Procedure (Preparation)

CAMERA AIMING ADJUSTMENT

Work Procedure (Preparation)


1. PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of ADAS control unit and lane camera unit.
Is any DTC detected?
Except "C1B01"-Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to
Testing and Inspection (ICC/ADAS) or Testing and Inspection (LANE CAMERA).
"C1B01" or no DTC-GO TO 2.

2. PREPARATION BEFORE CAMERA AIMING ADJUSTMENT

1.Perform pre-inspection for diagnosis. LDW & LDP.
2.Adjust the tire pressure to the specified pressure value.
3.Maintain no-load in vehicle.
4.Check if coolant and engine oil are filled up to correct level and fuel tank is full.
5.Shift the selector lever to "P" position and release the parking brake.
6.Clean the windshield.
7.Completely clear off the instrument panel.
- GO TO 3.

3. PREPARATION OF AIMING ADJUSTMENT JIG

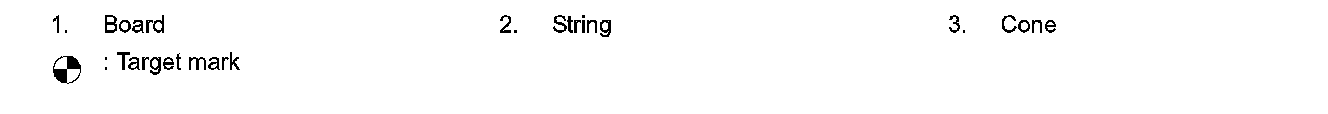

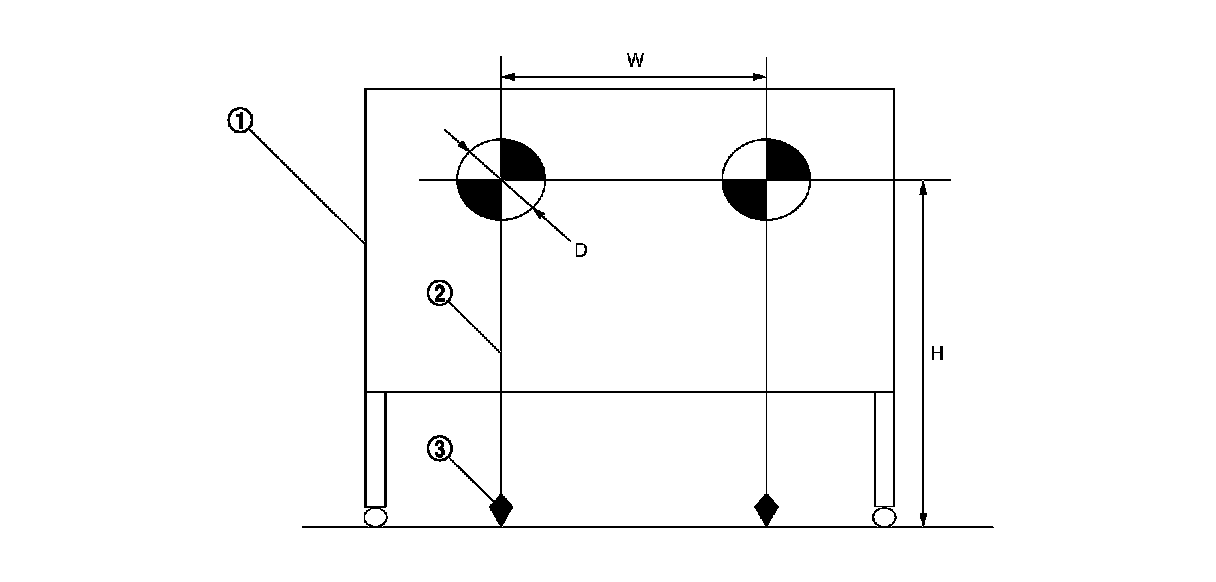

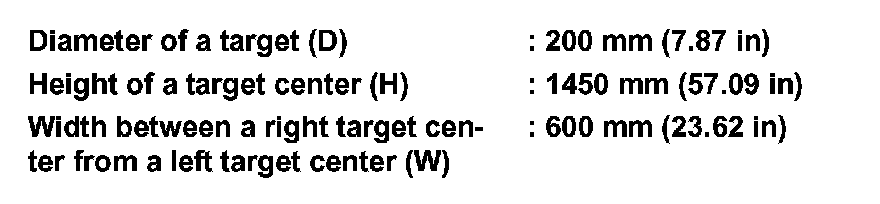

Prepare the aiming adjustment jig according to the following procedure and the figure.
1.Print out the target mark attached in this service manual. Work Procedure (Target Mark Sample).
2.Stick a printed target mark on the board with a scotch tape or a piece of double-sided tape.
NOTE:
- Use the board that peripheral area of the target is monochrome such as a white-board.
- Notice that the cross of the target is horizontal and vertical.















- Go to Work Procedure (Target Setting).
