Home >> Infiniti >> 2012 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters




TEL ADAPTER UNIT

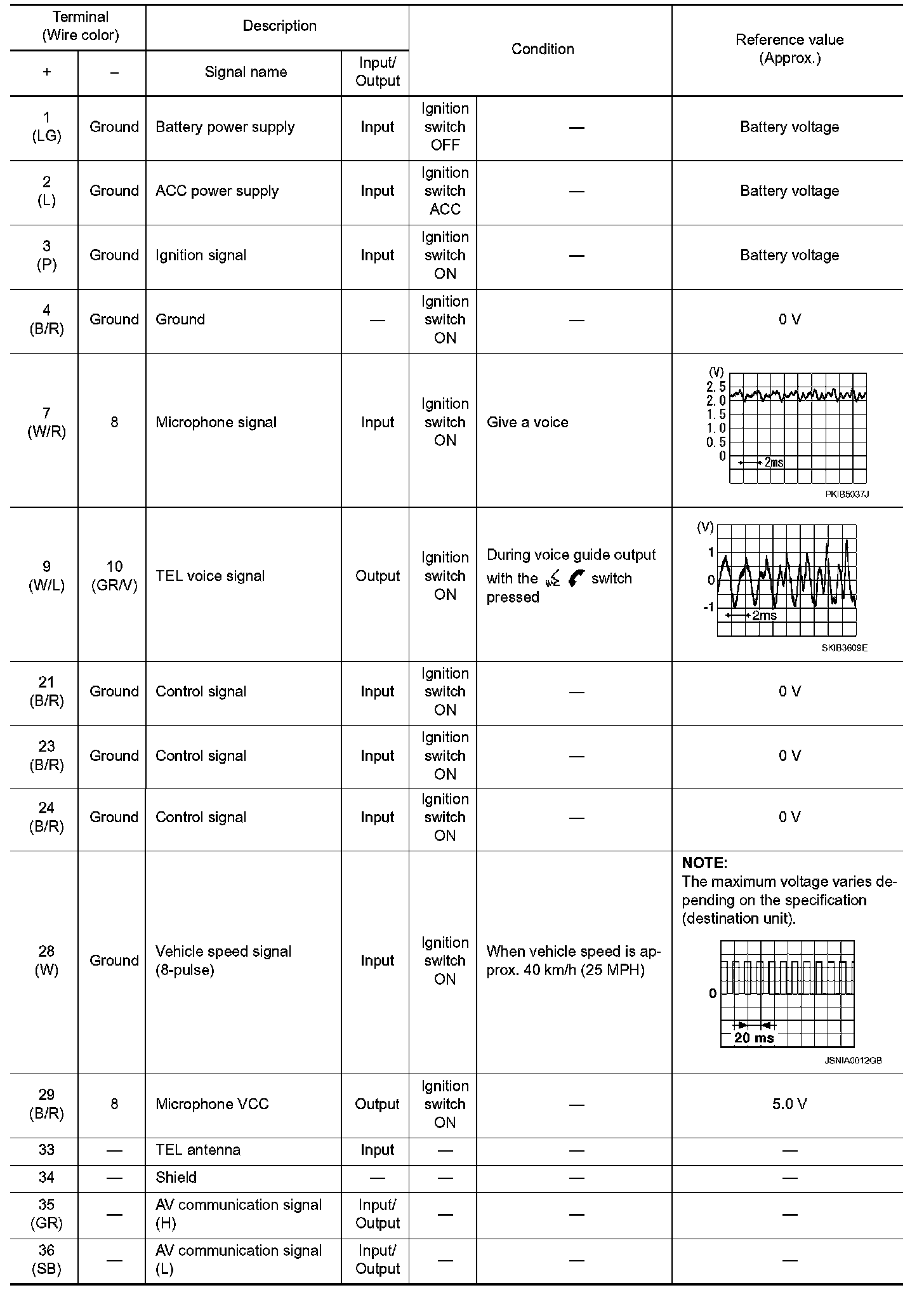

Reference Value

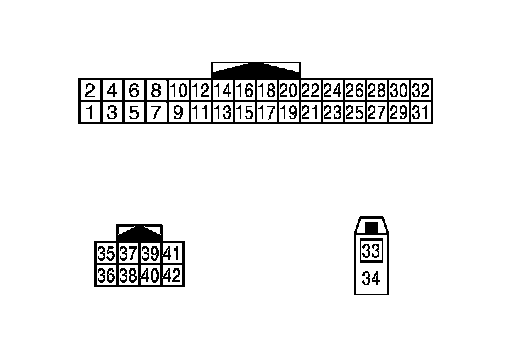

PHYSICAL VALUES
