U1708

U1708, U1710 REAR DOOR SPEAKER

DTC Logic

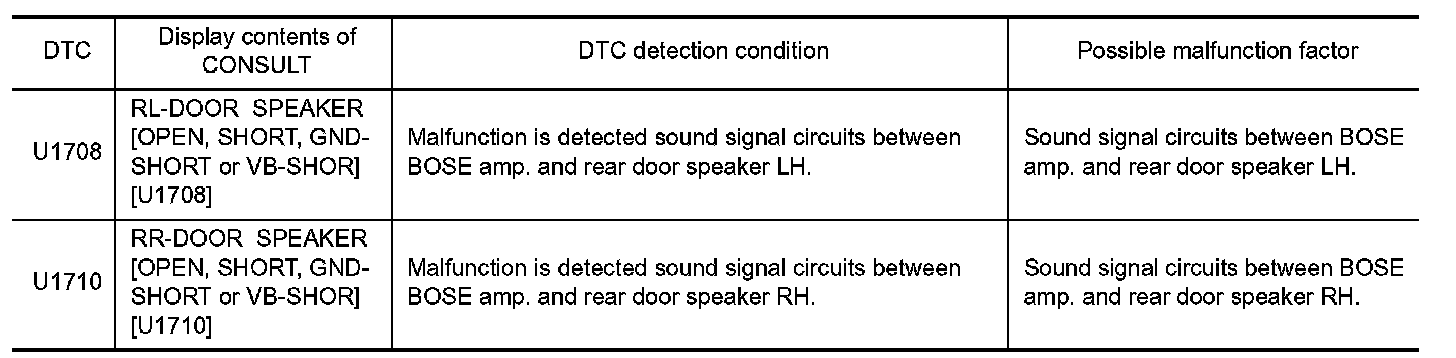

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM THE SELF-DIAGNOSIS

1.Delete the "self-diagnosis" results of "MULTI AV". Turn ignition switch OFF.
2.Turn ignition switch ON. perform the self-diagnosis again.
3.Check that the DTC is detected again.
Is any DTC detected?
YES-1 - U1708 Check harnesses between BOSE amp. and rear door speaker LH.
YES-2 - U1710 Check harnesses between BOSE amp. and rear door speaker RH.
NO- Intermittent Incident.
