TPMS

Description

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit communicates data but selectively reads required data only.


DTC Logic

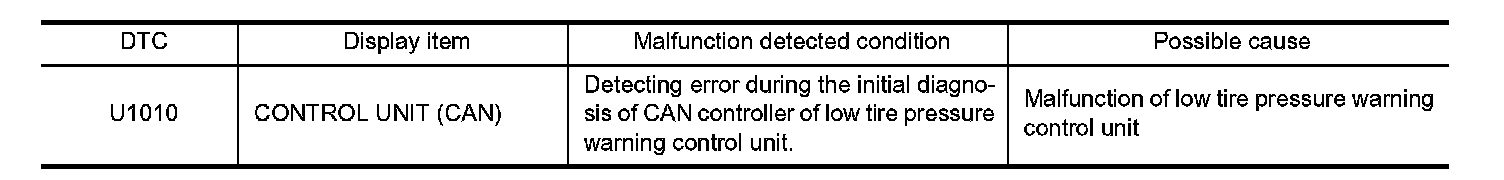

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION

With CONSULT
1.Drive for several minutes at a speed of 40 km/h (25 MPH) or more.
2.Stop the vehicle.
3.Perform self-diagnosis for "AIR PRESSURE MONITOR".
Is DTC "U1010" detected?
YES - Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK LOW TIRE PRESSURE WARNING CONTROL UNIT

Check low tire pressure warning control unit harness connector for disconnection or deformation.
Is the inspection result normal?
YES- Replace low tire pressure warning control unit. Removal And Installation.
NO- Repair or replace error-detected parts.
