DCA

U1010 CONTROL UNIT (CAN)

ADAS CONTROL UNIT : Description

CAN controller controls the communication of CAN communication signal and ITS communication signal, and the error detection.


ADAS CONTROL UNIT : DTC Logic

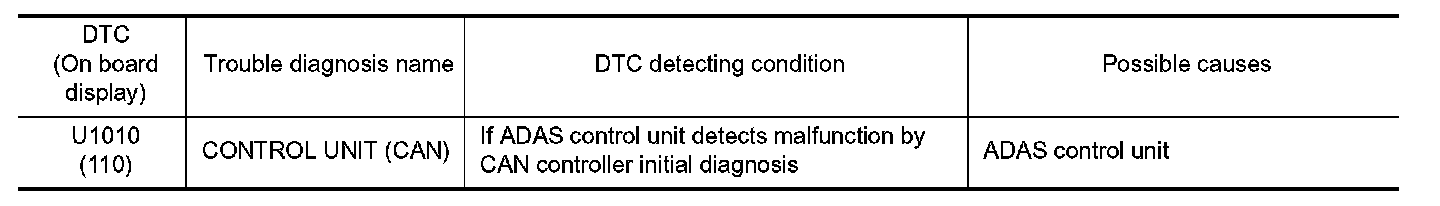

DTC DETECTION LOGIC








ADAS CONTROL UNIT : Diagnosis Procedure


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn the DCA system ON.
2.Perform "All DTC Reading" with CONSULT.
3.Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1010" detected as the current malfunction?
YES- Replace the ADAS control unit. Service and Repair.
NO- INSPECTION END


ACCELERATOR PEDAL ACTUATOR : Description

CAN controller controls the communication of ITS communication signal and the error detection.


ACCELERATOR PEDAL ACTUATOR : DTC Logic

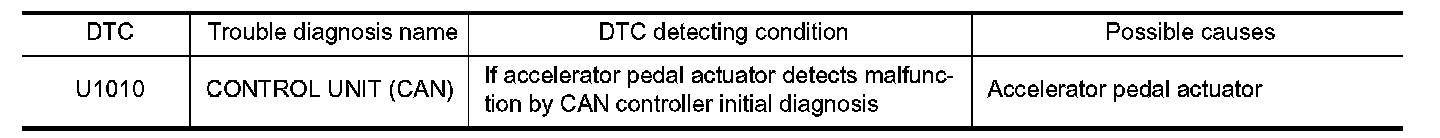

DTC DETECTION LOGIC








ACCELERATOR PEDAL ACTUATOR : Diagnosis Procedure


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn the DCA system ON.
2.Perform "All DTC Reading" with CONSULT.
3.Check if the "U1010" is detected as the current malfunction in "Self Diagnostic Result" of "ACCELE
PEDAL ACT".
Is "U1010" detected as the current malfunction?
YES- Replace the accelerator pedal actuator. Exploded View.
NO- INSPECTION END
