Exterior Lighting

U1000 CAN COMM CIRCUIT

DTC Logic

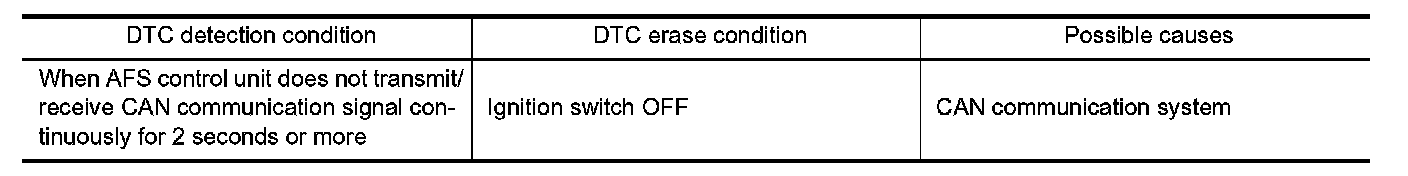

DTC DETECTION LOGIC

[U1000] CAN communication circuit







Diagnosis Procedure


1. PERFORM SELF DIAGNOSTIC

1.Turn ignition switch ON and wait for 2 seconds or more.
2.Check "Self Diagnostic Result".
Is "CAN COMM CIRCUIT" displayed?
YES- Trouble Diagnosis Flow Chart.
NO- Intermittent Incident.
