Brake Control System

U1000 CAN COMM CIRCUIT

Description

CAN communication allows a high rate of information transmission through the two communication lines (CAN-H line and CAN-L line) connecting various control units in the system. Each control unit transmits/
receives data but selectively reads required data only.


DTC Logic

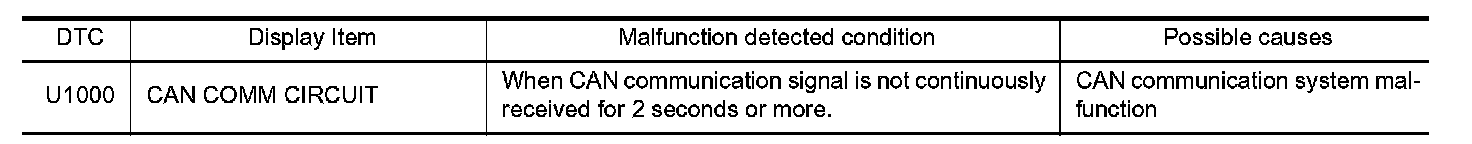

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS".
Is DTC "U1000" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure

Proceed to Trouble Diagnosis Flow Chart.
