P0720

P0720 OUTPUT SPEED SENSOR

DTC Logic

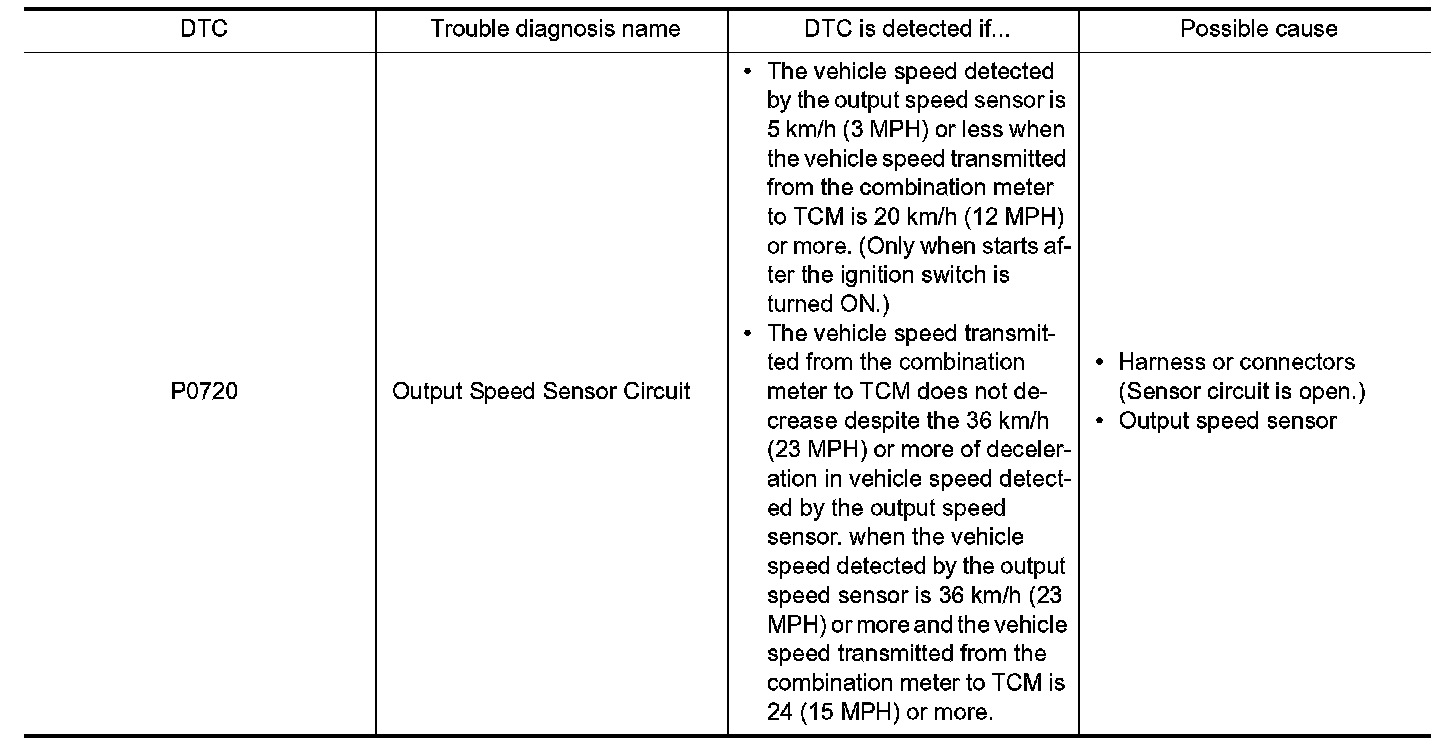

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


CAUTION:
- Always drive vehicle at a safe speed.
- Be careful not to rev engine into the red zone on the tachometer.

1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Start the engine.
2.Select "ESTM VSP SIG" in "Data Monitor" in "TRANSMISSION".
3.Drive vehicle and maintain the following conditions for 60 seconds or more.





4.Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT".
Is "P0720" detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace damaged parts.

2. REPLACE OUTPUT SPEED SENSOR AND CHECK DTC

1.Replace output speed sensor. Exploded View (2WD) or {LINK_TO:0000000007134271}, "Exploded
View" (AWD).
2.Perform "DTC CONFIRMATION PROCEDURE". .
Is the inspection result normal?
YES- INSPECTION END
NO- Replace control valve & TCM. Exploded View.
