A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
DTC Priorities for Troubleshooting
>>
Low Tire Pressure Warning Control Unit
Low Tire Pressure Warning Control Unit
LOW TIRE PRESSURE WARNING CONTROL UNIT

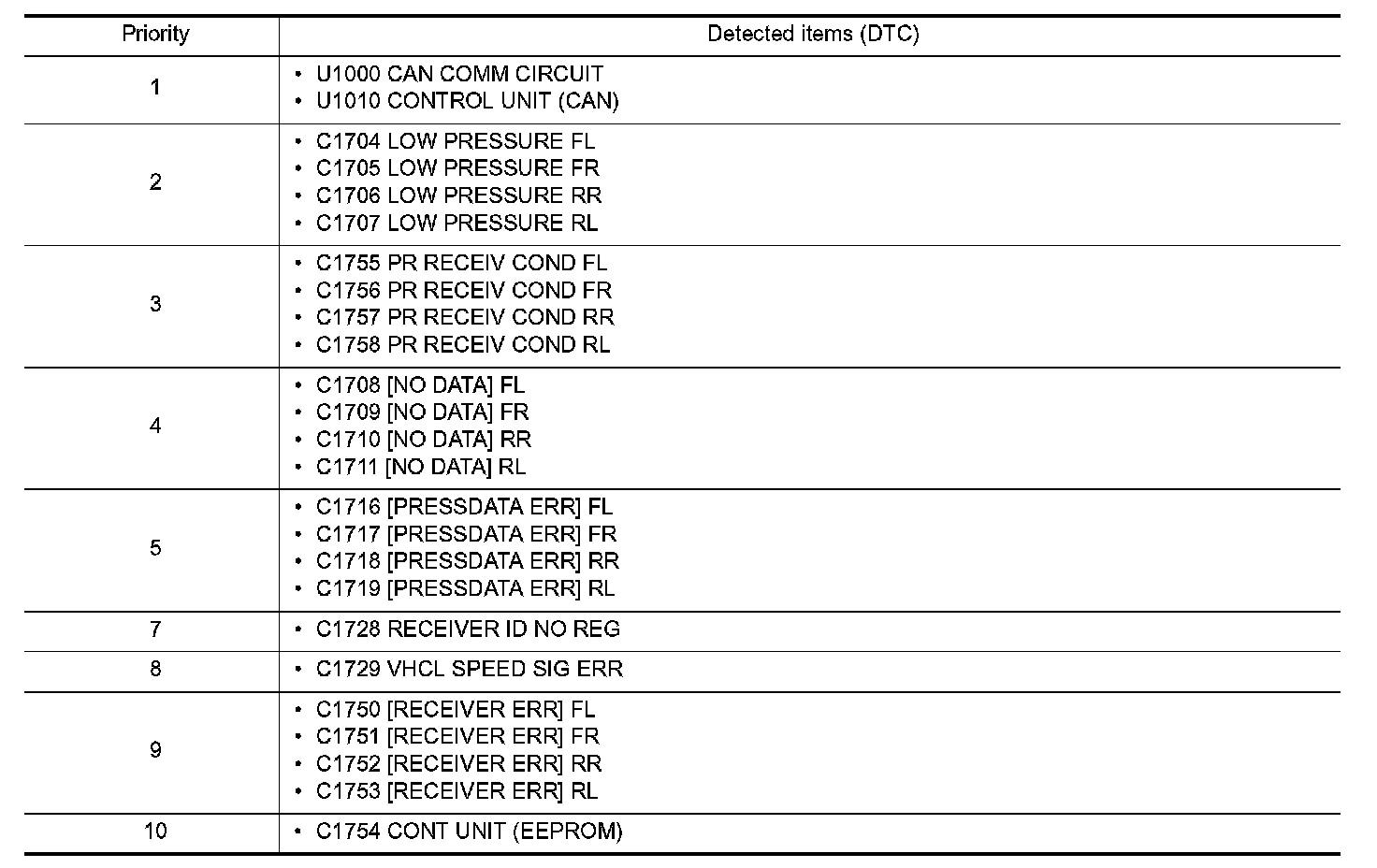

DTC Inspection Priority Chart
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
