AFS Control Unit

AFS CONTROL UNIT

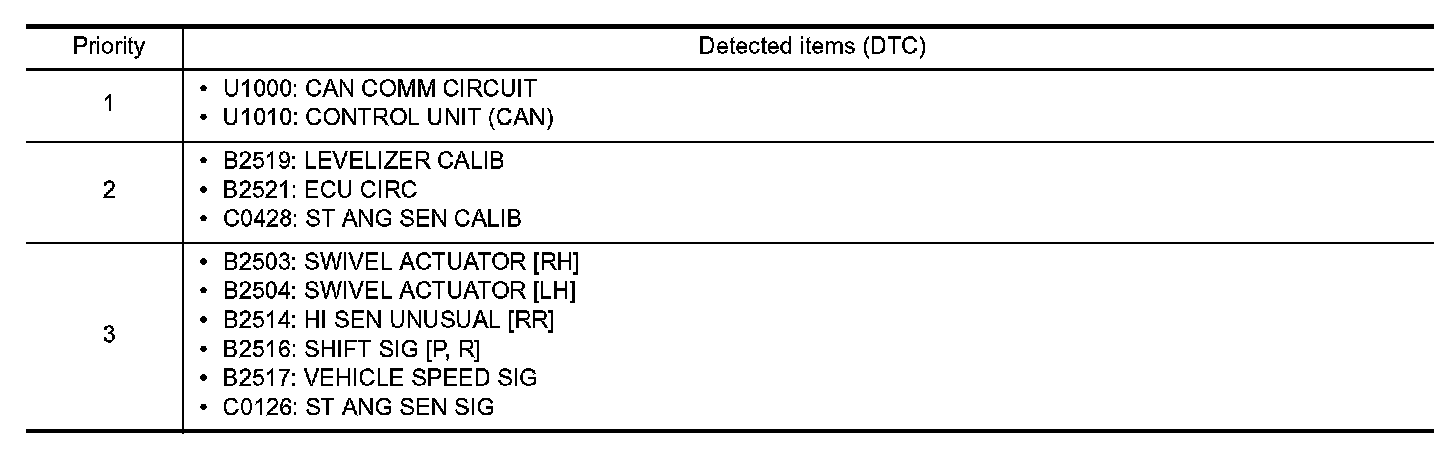

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
NOTE:
-If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000.
-If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010.
