Home >> Infiniti >> 2012 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> DTC Priorities for Troubleshooting >> ADAS Control Unit >> FCW

FCW




ADAS CONTROL UNIT

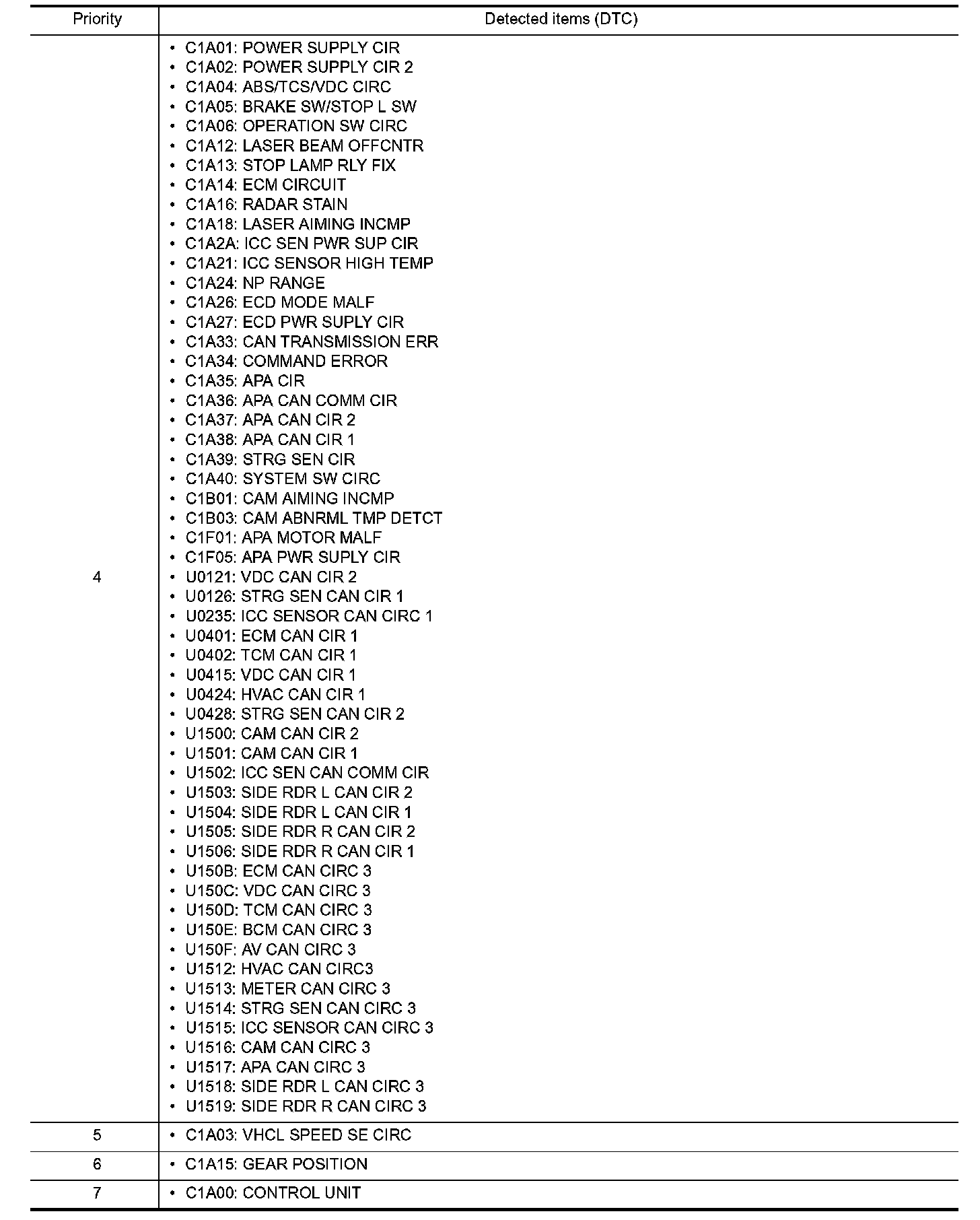

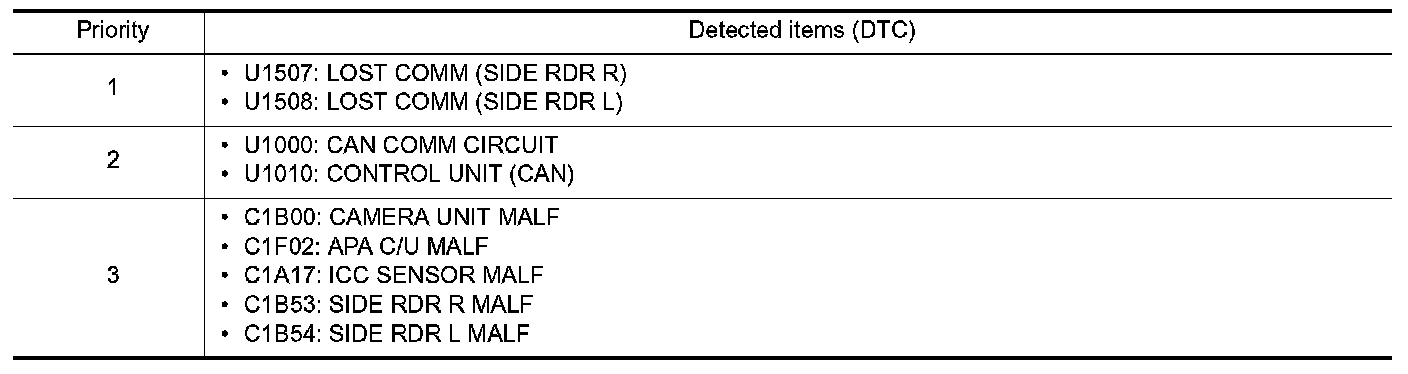

DTC Inspection Priority Chart

If multiple DTCs are detected simultaneously, check them one by one depending on the following DTC inspection priority chart.
