Driver Assistance System

C1F02 ACCELERATOR PEDAL ACTUATOR

ADAS CONTROL UNIT : DTC Logic

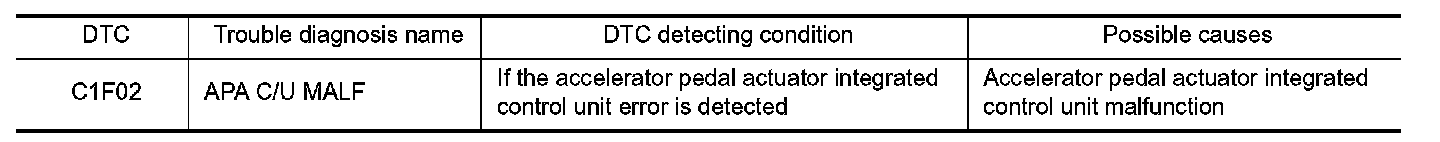

DTC DETECTION LOGIC







1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the DCA system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1F02" is detected as the current malfunction on the self-diagnosis results of "ICC/ADAS".
Is "C1F02" detected as the current malfunction?
YES- .
NO- Intermittent Incident.


ADAS CONTROL UNIT : Diagnosis Procedure


1. CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS

Check if "U1000" is detected other than "C1F02" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES- Perform the CAN communication system inspection. Repair or replace the malfunctioning parts.
DCA.
NO- GO TO 2.

2. CHECK ACCELERATOR PEDAL ACTUATOR SELF-DIAGNOSIS RESULTS

Check if "C1F02" is detected in "Self Diagnostic Result" of "ACCELE PEDAL ACT".
Is "C1F02" detected?
YES- Testing and Inspection.
NO- Replace the ADAS control unit. Service and Repair.


ACCELERATOR PEDAL ACTUATOR : DTC Logic

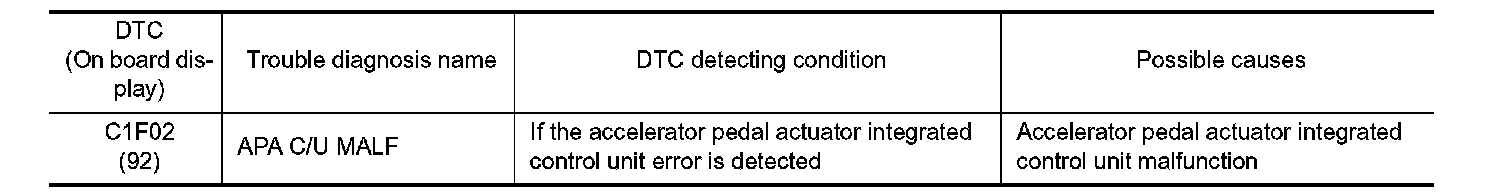

DTC DETECTION LOGIC








ACCELERATOR PEDAL ACTUATOR : Diagnosis Procedure


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the DCA system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1F02" is detected as the current malfunction on the self-diagnosis results of "ACCELE
PEDAL ACT" or "ICC/ADAS".
Is "C1F02" detected as the current malfunction?
YES- Replace the accelerator pedal assembly. Exploded View.
NO- INSPECTION END
