C1B50

C1B50 SIDE RADAR MALFUNCTION

DTC LOGIC

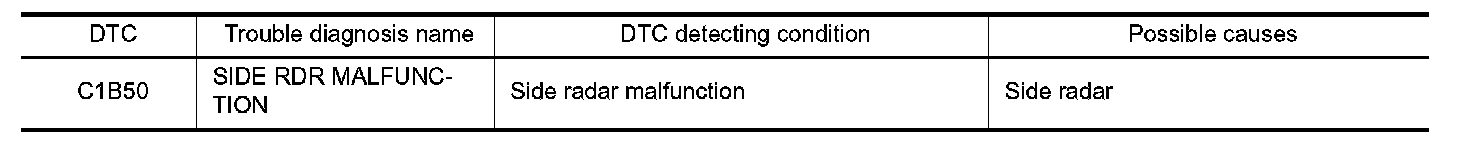

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Perform "All DTC Reading" with CONSULT.
3.Check if the "C1B50" is detected as the current malfunction in "Self Diagnostic Result" of "SIDE RADAR
RIGHT/LEFT".
Is the "C1B50" detected as the current malfunction?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULT

Check if any DTC other than "C1B50" is detected in "Self Diagnostic Result" of "SIDE RADAR LEFT/RIGHT"
Is any DTC detected?
YES- Perform diagnosis on the detected DTC and repair or replace the malfunction part. Testing and Inspection (SIDE RADAR RIGHT) or Testing and Inspection (SIDE RADAR LEFT).
NO- Replace the side radar. Side Radar.
