LDW & LDP

C1B03 ABNORMAL TEMP DETECT

ADAS CONTROL UNIT : DTC Logic

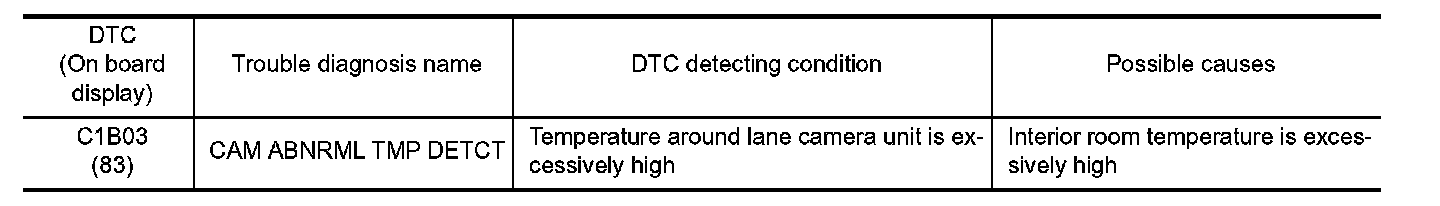

DTC DETECTION LOGIC








ADAS CONTROL UNIT : Diagnosis Procedure


1. CHECK LANE CAMERA UNIT SELF-DIAGNOSIS RESULTS

1.Perform "All DTC Reading" with CONSULT.
2.Check if the "C1B03" is detected in "Self Diagnostic Result" of "LANE CAMERA"
Is "C1B03" detected?
YES-
NO- GO TO 2.

2. CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS

1.Erase All self-diagnosis results with CONSULT.
2.Perform "All DTC Reading".
3.Check if the "C1B03" is detected in "Self Diagnostic Result" of "ICC/ADAS"
Is "C1B03" detected?
YES- Replace the ADAS control unit. LDW & LDP.
NO- INSPECTION END


LANE CAMERA UNIT : DTC Logic

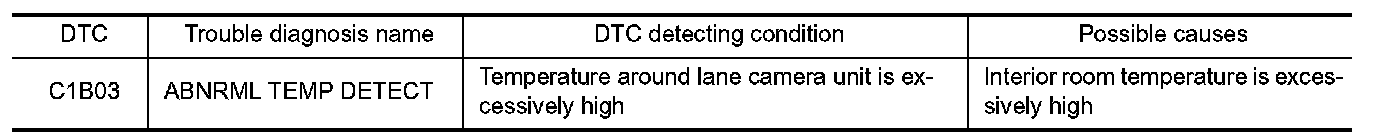

DTC DETECTION LOGIC








LANE CAMERA UNIT : Diagnosis Procedure


1. COOLING LANE CAMERA UNIT

1.Wait for 10 minutes or more to cool the lane camera unit.
2.Erase All self-diagnosis results with CONSULT.
3.Perform "All DTC Reading".
4.Check if the "C1B03" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B03" detected?
YES- Replace the lane camera unit. LDW & LDP.
NO- INSPECTION END
