LDW & LDP

C1B00 CAMERA UNIT MALF

ADAS CONTROL UNIT : DTC Logic

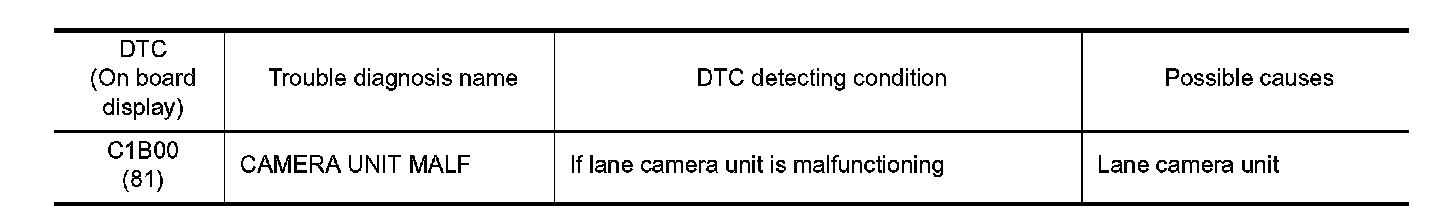

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Perform "All DTC Reading" with CONSULT.
3.Check if the "C1B00" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1B00" detected as the current malfunction?
YES- .
NO- INSPECTION END


ADAS CONTROL UNIT : Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULTS

Check if "C1B00" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B00" detected?
YES-
NO- Replace the ADAS control unit. Service and Repair.


LANE CAMERA UNIT : DTC Logic

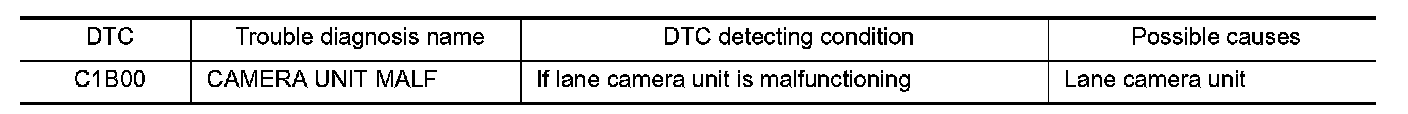

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Perform "All DTC Reading" with CONSULT.
3.Check if the "C1B00" is detected as the current malfunction in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B00" detected as the current malfunction?
YES- .
NO- INSPECTION END


LANE CAMERA UNIT : Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULTS

Check if any DTC other than "C1B00" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is any DTC detected?
YES- Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to
Testing and Inspection.
NO- Replace the lane camera unit. LDW & LDP.
