Sensor Power Supply Circuit

C1A2A ICC SENSOR POWER SUPPLY CIRCUIT

DTC Logic

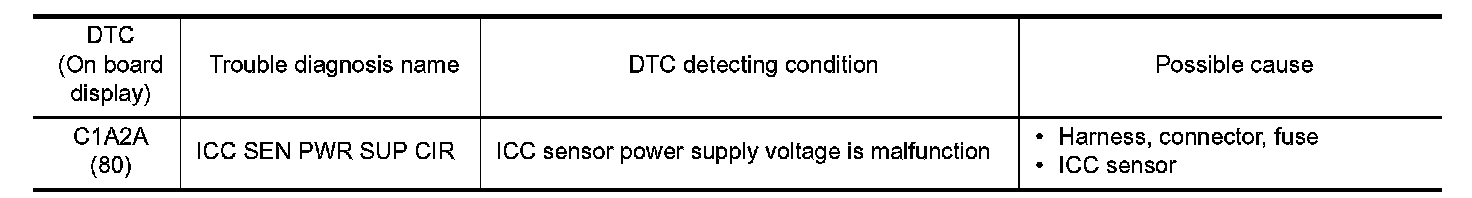

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the MAIN switch of ICC system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1A2A" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A2A" detected as the current malfunction?
YES- C1A27.
NO- Intermittent Incident.


Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULTS

Check if "U1000" is detected other than "C1A2A" in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES- Perform the CAN communication system inspection. Repair or replace the malfunctioning parts.
Cruise Control.
NO- GO TO 2.

2. CHECK ICC SENSOR SELF-DIAGNOSIS

Check if any DTC is detected in "Self Diagnostic Result" of "LASER".
Is any DTC detected?
YES- Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to
Testing and Inspection.
NO- Replace ADAS control unit. Service and Repair.
