Cruise Control System

C1A18 LASER AIMING INCMP

ADAS CONTROL UNIT : DTC Logic

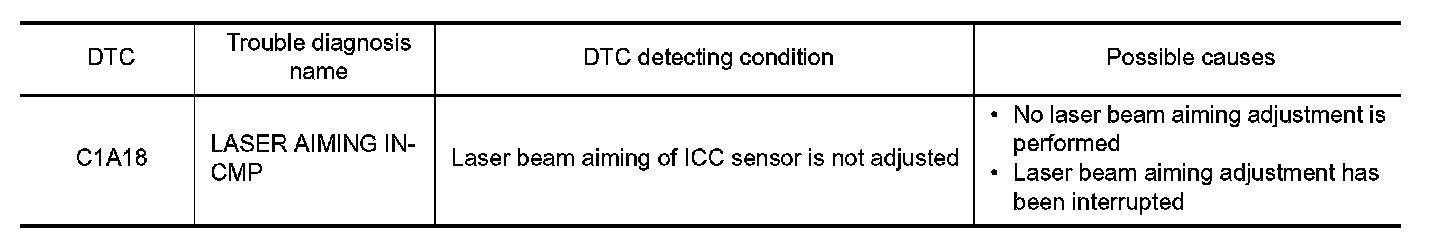

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the MAIN switch of ICC system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1A18" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A18" detected as the current malfunction?
YES- .
NO- INSPECTION END


ADAS CONTROL UNIT : Diagnosis Procedure


1. ADJUST LASER BEAM AIMING

Check if the "C1A18" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected?
YES- .
NO- Replace the ADAS control unit. Service and Repair.


ICC SENSOR : DTC Logic

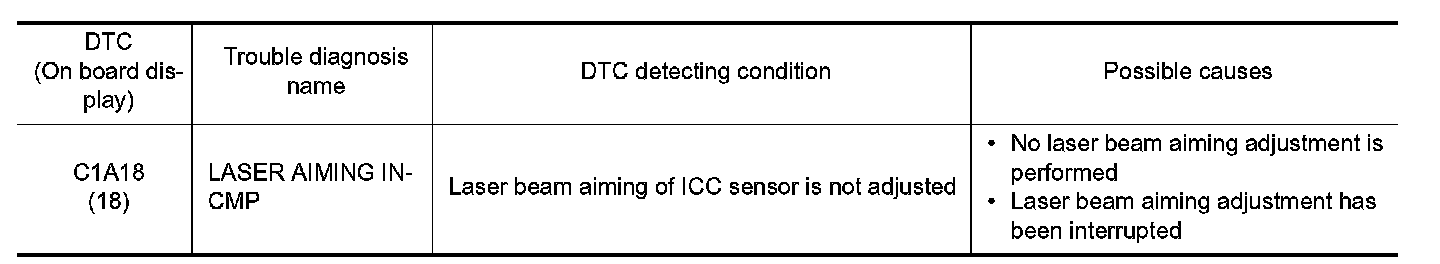

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Turn the MAIN switch of ICC system ON.
3.Perform "All DTC Reading" with CONSULT.
4.Check if the "C1A18" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected as the current malfunction?
YES- .
NO- INSPECTION END


ICC SENSOR : Diagnosis Procedure


1. ADJUST LASER BEAM AIMING

1.Adjust the laser beam aiming. Description.
2.Erase All self-diagnosis results with CONSULT.
3.Perform "All DTC Reading".
4.Check if the "C1A18" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected?
YES- Replace the ICC sensor. Removal And Installation.
NO- INSPECTION END
