BSW & BSI

C1A14 ECM

DTC Logic

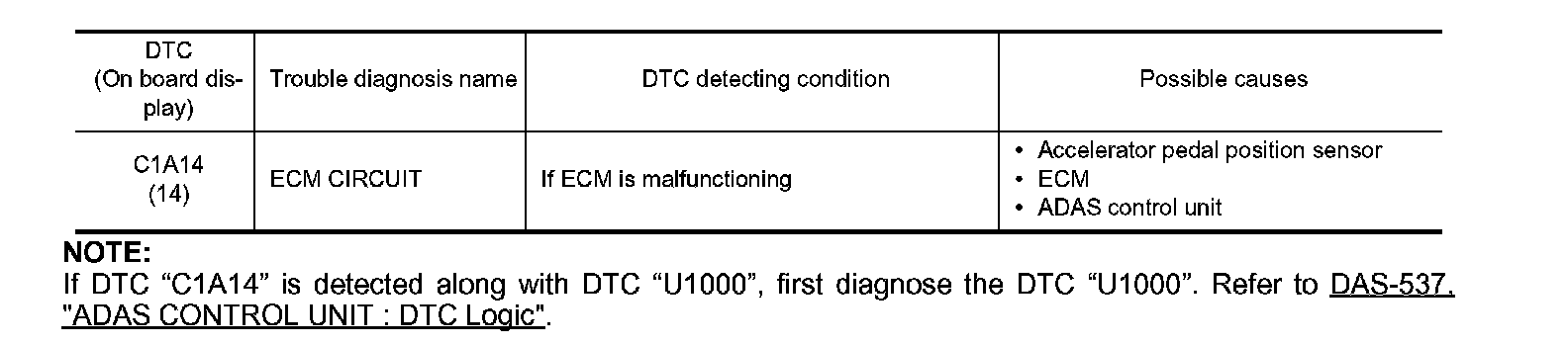

DTC DETECTION LOGIC






NOTE:
If DTC "C1A14" is detected along with DTC "U1000", first diagnose the DTC "U1000". BSW & BSI.

1. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine.
2.Operate the BSI system and drive.

CAUTION:
Always drive safely.
3.Stop the vehicle.
4.Perform "All DTC Reading" with CONSULT.
5.Check if the "C1A14" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A14" detected as the current malfunction?
YES- .
NO- Intermittent Incident.


Diagnosis Procedure


1. CHECK SELF-DIAGNOSIS RESULTS

Check if "U1000" is detected other than "C1A14" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES- Perform the CAN communication system inspection. Repair or replace the malfunctioning parts.
BSW & BSI.
NO- GO TO 2.

2. PERFORM SELF-DIAGNOSIS OF ECM

Check if any DTC is detected in "Self Diagnostic Result" of "ENGINE".
Is any DTC detected?
YES- Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to
Testing and Inspection (VQ-37VHR) or Testing and Inspection (VK-56VD).
NO- Replace the ADAS control unit. Service and Repair.
