C1A12 LASER BEAM OFF CENTER

DTC Logic

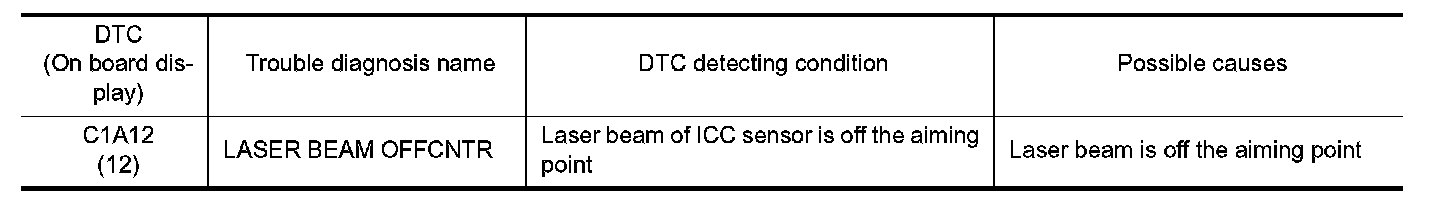

DTC DETECTION LOGIC








Diagnosis Procedure


1. CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS

1.Perform "All DTC Reading" with CONSULT.
2.Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES- C1A12.
NO- GO TO 2.

2. CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS

Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A12" detected?
YES- Replace ADAS control unit. Service and Repair.
NO- INSPECTION END
