Cruise Control System

C1A12 LASER BEAM OFF CENTER

ADAS CONTROL UNIT : DTC Logic

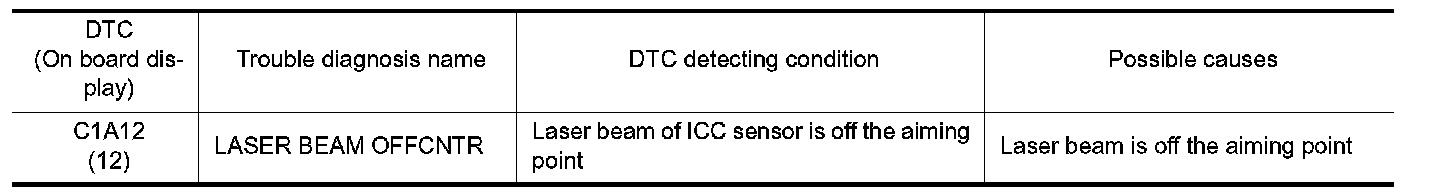

DTC DETECTION LOGIC








ADAS CONTROL UNIT : Diagnosis Procedure


1. CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS

1.Perform "All DTC Reading" with CONSULT.
2.Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES- .
NO- GO TO 2.

2. CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS

Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A12" detected?
YES- Replace ADAS control unit. Service and Repair.
NO- INSPECTION END


ICC SENSOR : DTC Logic

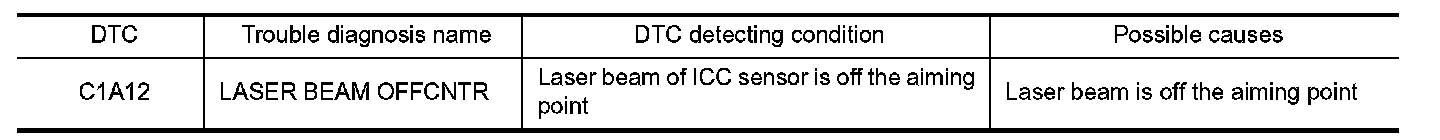

DTC DETECTION LOGIC








ICC SENSOR : Diagnosis Procedure


1. ADJUST LASER BEAM AIMING

1.Adjust the laser beam aiming with CONSULT. Description.
2.Perform "All DTC Reading".
3.Check if the "C1A12" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES- Replace the ICC sensor. Removal And Installation.
NO- INSPECTION END
