C1930

C1930 4WAS FRONT CONTROL UNIT

DTC Logic

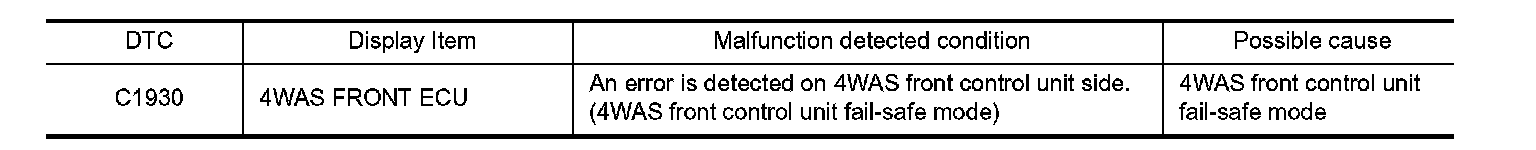

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. RECHECK DTC

With CONSULT
1.Turn the ignition switch from OFF to ON.
2.Perform self-diagnosis for "4WAS(MAIN)/RAS/HICAS".
Is DTC "C1930" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)

With CONSULT
Perform self-diagnosis for "4WAS(MAIN)/RAS/HICAS".
Is any DTC except "C1930" detected?
YES- Check the error system.
NO- Perform self-diagnosis for "4WAS(FRONT)". 4WAS Front Control Unit.
