C1668

C1668 LOCK HOLDER GAP DETECT

Description

- Wiring connected to 4WAS front actuator is integrated with 4WAS front actuator.
- 4WAS front actuator rotates together with steering wheel.
- 4WAS front actuator mainly consists of five components. [4WAS front lock solenoid valve (lock structure), front wheel steering angle sensor, 4WAS front motor, gear shaft, and spiral cable]
- 4WAS front lock solenoid valve (lock structure) is controlled by the 4WAS front control unit, and locks/
unlocks 4WAS front actuator.
- If a strong force (rotation direction) is applied to 4WAS front actuator, the locking mechanism (holder)
absorbs the force and locks 4WAS front actuator.
- Front wheel steering angle sensor detects a turning angle of 4WAS front motor.
- 4WAS front motor controls number of revolutions by a command value from the 4WAS front control unit.
- Gear shaft is an output axis of 4WAS front motor. (Gear shaft = 4WAS front motor revolution + steering angle)
- Spiral cables mean the power line and signal lines of 4WAS front motor.


DTC Logic

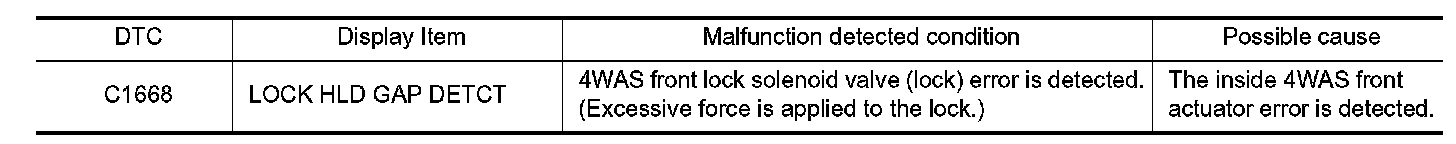

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. RECHECK DTC

With CONSULT
1.Turn the ignition switch from OFF to ON.
2.Perform self-diagnosis for "4WAS(FRONT)".
Is DTC "C1668" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS (4WAS FRONT CONTROL UNIT)

With CONSULT
1.Start the engine.

CAUTION:
Never drive the vehicle.
2.Perform self-diagnosis for "4WAS(FRONT)". Check that DTC "C1668" is detected.

CAUTION:
- Replace 4WAS front actuator when the diagnosis history remains.
- Never repair the malfunctioning part in 4WAS front actuator adjustment without replacing 4WAS
front actuator.
- Replace 4WAS front actuator. Removal And Installation.
