C1201

C1201 AWD CONTROL UNIT

DTC Logic

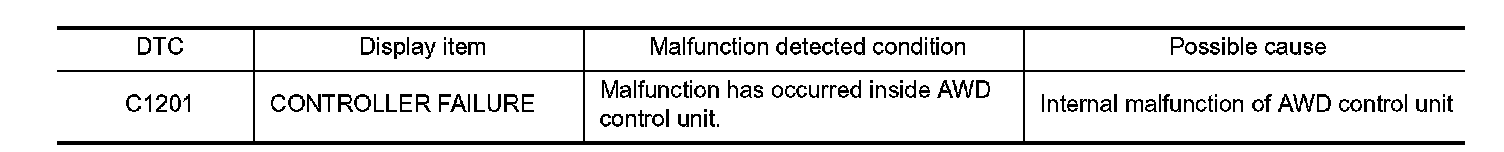

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC REPRODUCTION PROCEDURE

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "C1201" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS

With CONSULT
1.Erase self-diagnostic results for "ALL MODE AWD/4WD".
2.Turn the ignition switch OFF, and then wait 10 seconds or more.
3.Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "C1201" detected?
YES- Replace AWD control unit. Service and Repair.
NO- Check AWD control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace error-detected parts.
