C119A

C119A VACUUM SENSOR

DTC Logic

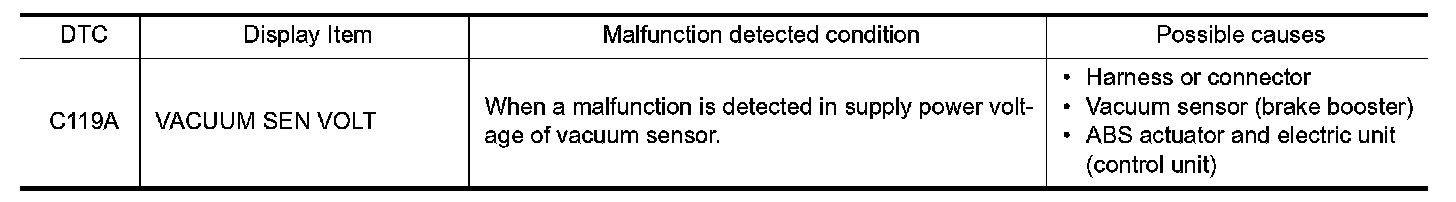

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS".
Is DTC "C119A" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK VACUUM SENSOR POWER SUPPLY

1.Turn the ignition switch OFF.
2.Disconnect vacuum sensor harness connector.

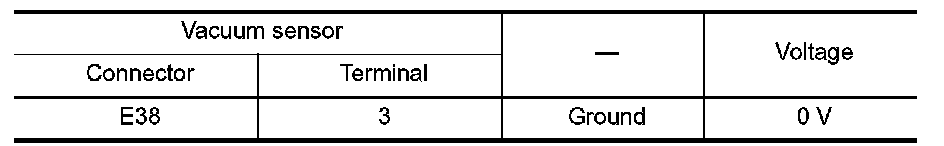

3.Check voltage between vacuum sensor harness connector and ground.





4.Turn the ignition switch ON.

CAUTION:
Never start engine.

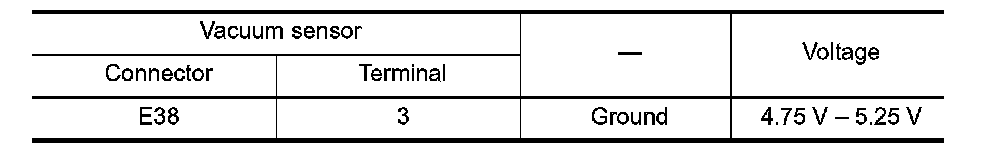

5.Check voltage between vacuum sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK VACUUM SENSOR POWER SUPPLY CIRCUIT

1.Turn the ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) harness connector.

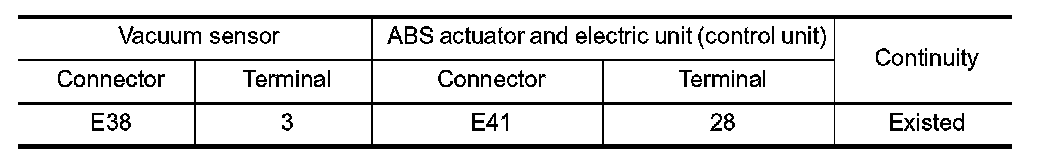

3.Check continuity between vacuum sensor harness connector and ABS actuator and electric unit (control unit) harness connector.

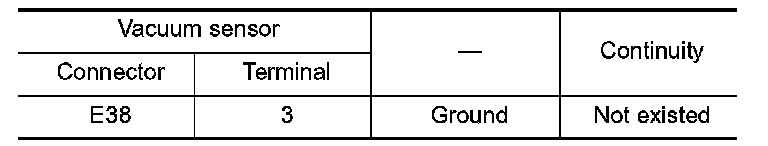

4.Check continuity between vacuum sensor harness connector and ground.





Is the inspection result normal?
YES- Perform diagnosis of ABS actuator and electric unit (control unit) power supply and ground circuit.
Power Supply And Ground Circuit.
NO- Repair or replace error-detected parts.

3. CHECK VACUUM SENSOR GROUND CIRCUIT

1.Turn the ignition switch OFF.

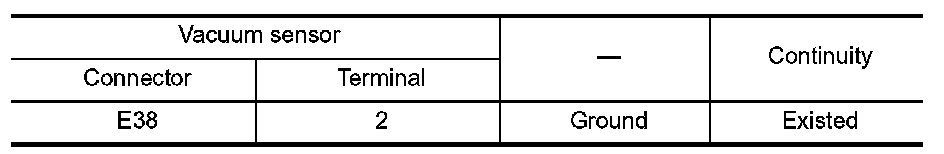

2.Check continuity between vacuum sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK TERMINAL

- Check vacuum sensor pin terminals for damage or loose connection with harness connector.
- Check ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO- Repair or replace error-detected parts.
