C1160

C1160 INCOMPLETE DECEL G SENSOR CALIBRATION

DTC Logic

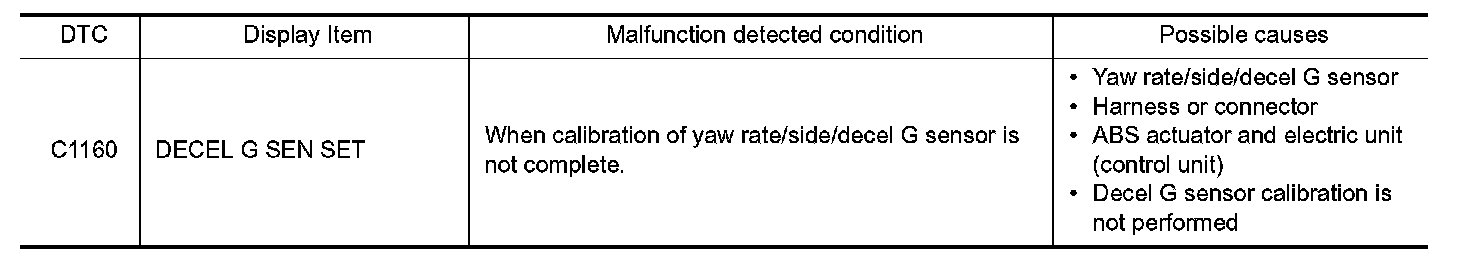

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS".
Is DTC "C1160" detected?
YES- Proceed to diagnosis procedure. .
NO- INSPECTION END


Diagnosis Procedure


1. DECEL G SENSOR CALIBRATION

Perform decel G sensor calibration. Work Procedure.
- GO TO 2.

2. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

With CONSULT
Perform self-diagnosis for "ABS".
Is DTC "C1160" detected?
YES- GO TO 3.
NO- INSPECTION END

3. CHECK YAW RATE/SIDE/DECEL G SENSOR SYSTEM

1.Turn the ignition switch OFF.
2.Check yaw rate/side/decel G sensor system. C1145.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO- Repair or replace error-detected parts.
