C0126

C0126 STEERING ANGLE SENSOR SIGNAL

DTC Logic

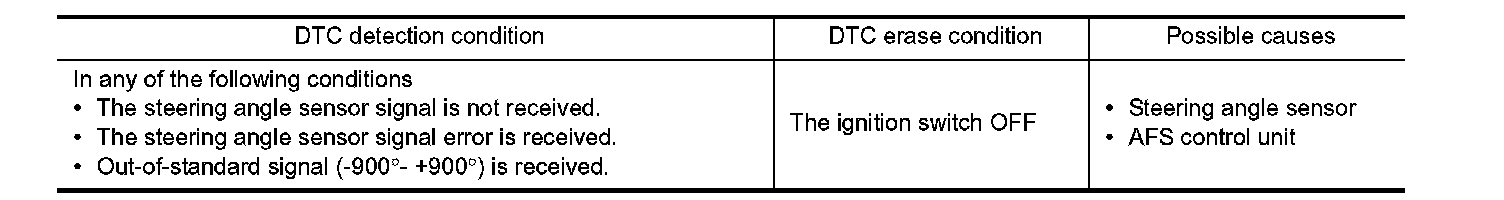

DTC DETECTION LOGIC

[C0126] Steering angle sensor signal






DTC CONFIRMATION PROCEDURE


1. DTC ERASE

Erase the DTC memory of AFS with CONSULT.
- GO TO 2.

2. DTC CONFIRMATION

1.Start the engine.
2.Turn the steering wheel to the maximum right/left.
3.Select the self-diagnosis with CONSULT.
4.Check the self-diagnosis result. Testing and Inspection.
Is DTC "C0126" detected?
YES- .
NO- Intermittent Incident.


Diagnosis Procedure


1. ABS ACTUATOR AND ELECTRICAL UNIT (CONTROL UNIT) SELF-DIAGNOSIS

Check the self-diagnosis result with CONSULT. Check that ABS actuator and electrical unit (control unit) does not detect any DTCs.
Is any DTC detected?
YES- Check ABS actuator and electrical unit (control unit).Testing and Inspection.
NO- GO TO 2.

2. DTC ERASE

Erase DTC memory of AFS with CONSULT.
Is the memory erased?
YES- Inspection end.
NO- Replace AFS control unit. Removal And Installation
