B26F4

B26F4 STARTER CONTROL RELAY

DTC Logic

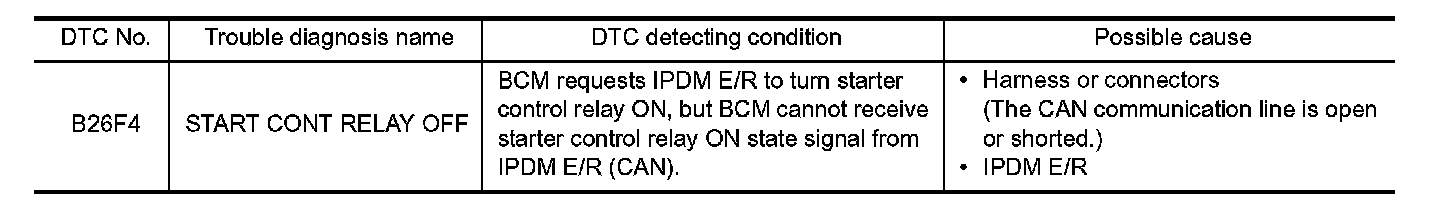

DTC DETECTION LOGIC

NOTE:
- If DTC B26F4 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
Body Control System.
- If DTC B26F4 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
Body Control System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press push-button ignition switch under the following conditions to start engine, and wait 1 second or more.
-Selector lever: In the P position
-Brake pedal: Depressed
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC OF IPDM E/R

Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Perform the diagnosis procedure related to the detected DTC. B26F3.
NO- GO TO 2.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
