B2619

B2619 BCM

DTC Logic

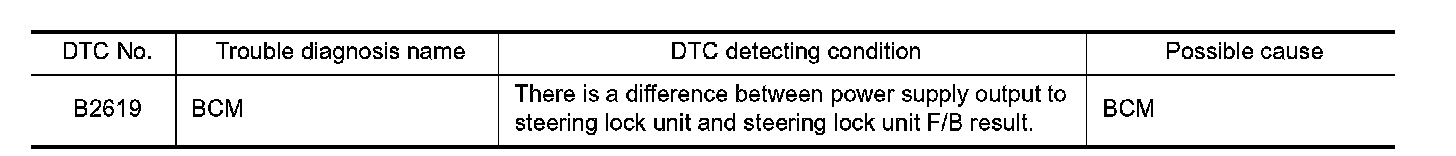

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press push-button ignition switch under the following conditions and wait 1 second or more.
-Selector lever: In the P position
-Brake pedal: Not depressed
2.Check DTC in "Self Diagnostic Result" of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B2619. .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE BCM

1.Replace BCM. Service and Repair.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
