B260D

B260D STEERING LOCK UNIT

DTC Logic

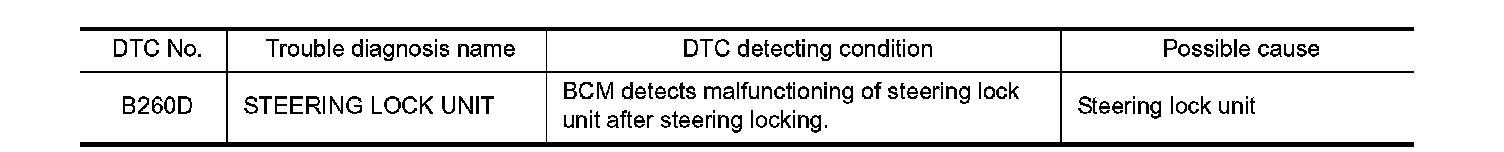

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Shift selector lever to the P position.
2.Press push-button ignition switch under the following condition.
-Brake pedal: Not depressed
3.Turn ignition switch ON.
4.Turn ignition switch OFF.
5.Press driver side door switch.
6.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B260D. .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE STEERING LOCK UNIT

1.Replace steering lock unit.
2.Perform the service procedure for steering lock unit replacement. Refer to CONSULT display instruction.
- INSPECTION END
