B260B

B260B STEERING LOCK UNIT

DTC Logic

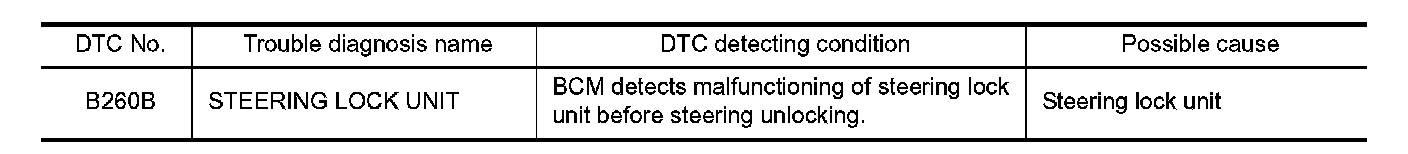

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Turn ignition switch OFF.
3.Press driver side door switch.
4.Shift selector lever to the P position.
5.Press push-button ignition switch under the following condition.
-Brake pedal: Not depressed
6.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B260B. .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE STEERING LOCK UNIT

1.Replace steering lock unit.
2.Perform the service procedure for steering lock unit replacement. Refer to CONSULT display instruction.
- INSPECTION END
