B2600

B2600 CONFIG ERROR

Description

The CAN gateway requires initial settings to judge necessary information, according to a vehicle specification.


DTC Logic

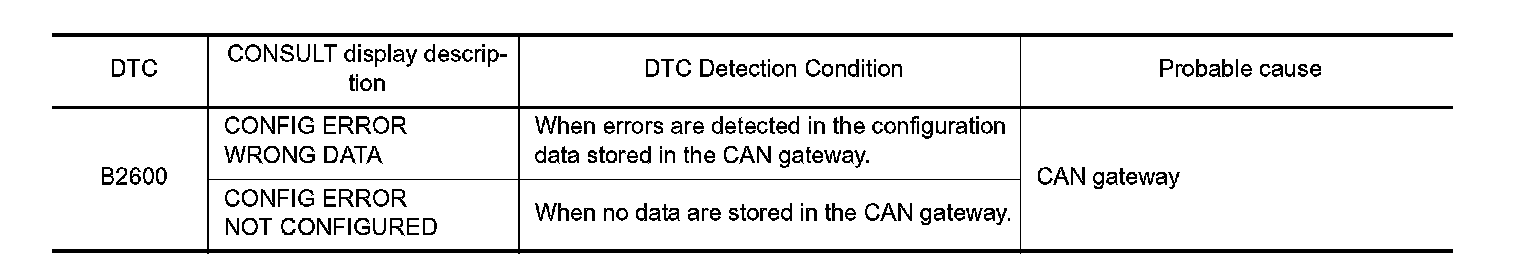

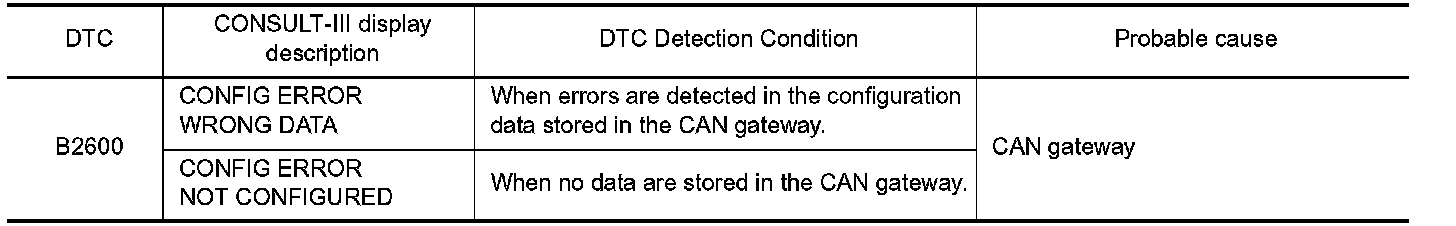

DTC DETECTION LOGIC








Diagnosis Procedure


1. REPLACE CAN GATEWAY

When DTC "B2600: CONFIG ERROR" is detected, replace CAN gateway.
- Replace CAN gateway. Service and Repair.
