B2517

B2517 VEHICLE SPEED SIGNAL

DTC Logic

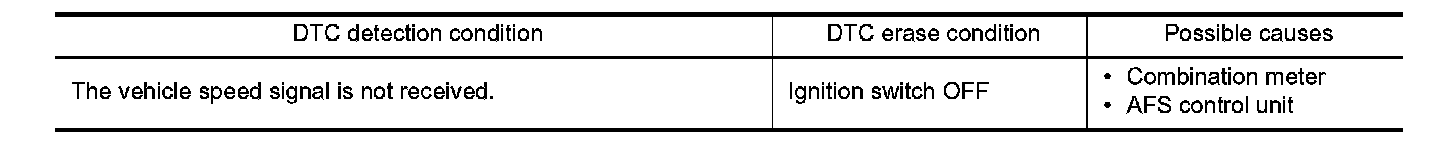

DTC DETECTION LOGIC

[B2517] Vehicle speed signal






DTC CONFIRMATION PROCEDURE


1. DTC ERASE

Erase the DTC memory of AFS with CONSULT.
- GO TO 2.

2. DTC CONFIRMATION

1.Turn ignition ON.
2.Select the self-diagnosis with CONSULT.
3.Check the self-diagnosis result. Testing and Inspection.
Is DTC "B2517" detected?
YES- .
NO- Intermittent Incident.


Diagnosis Procedure


1. COMBINATION METER SELF-DIAGNOSIS

Check the self-diagnosis result with CONSULT. Check that the combination meter does not detect any DTCs.
Is any DTC detected?
YES- Check the combination meter Combination Meter.
NO- GO TO 2.

2. DTC ERASE

Erase the DTC memory of AFS with CONSULT.
Is the memory erased?
YES- INSPECTION END.
NO- Replace AFS control unit. Removal And Installation
