B2466

DTC Logic

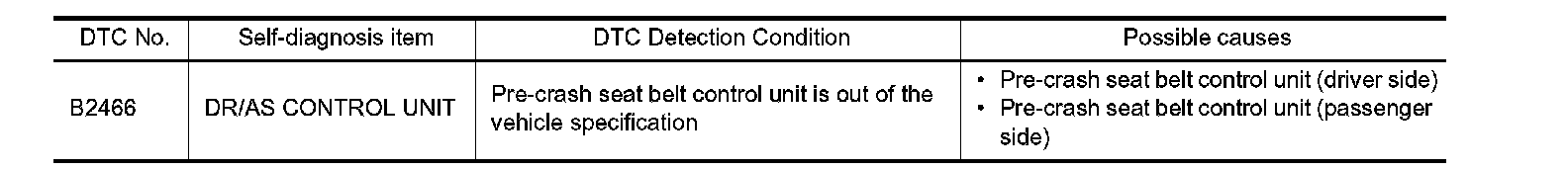

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. SELF-DIAGNOSIS WITH PRE-CRASH SEAT BELT CONTROL UNIT

1.Turn ignition switch ON.
2.Check "Self-diagnostic result" with CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK THE VEHICLE SPECIFICATION

Check the part number.
Does the part application fit to the vehicle specification?
YES- GO TO 2.
NO- Replace the malfunction parts.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
