B2461

Description

Inputs the vehicle speed signal from combination meter via CAN communication.


DTC Logic

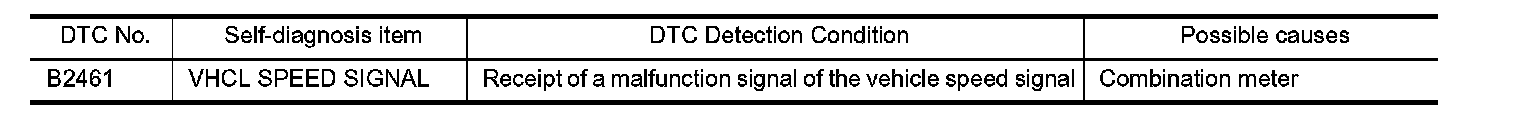

DTC DETECTION LOGIC

NOTE:
If DTC B2461 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Suspension Control.






DTC CONFIRMATION PROCEDURE


1. SELF-DIAGNOSIS WITH PRE-CRASH SEAT BELT CONTROL UNIT

1.Turn ignition switch ON.
2.Check "Self-diagnostic result" with CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC WITH "UNIFIED METER AND A/C AMP."

Check "Self-diagnostic result" for "METER/M&A" with CONSULT. Combination Meter.
Is DTC detected?
YES- Repair or replace malfunctioning parts.
NO- GO TO 2.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
