B210D

B210D STARTER RELAY

DTC Logic

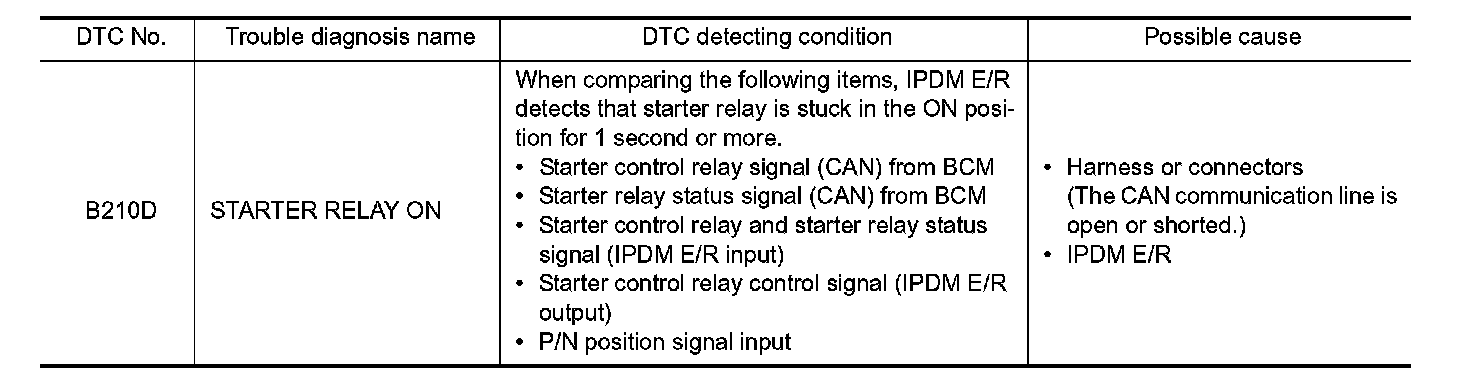

DTC DETECTION LOGIC

NOTE:
If DTC B210D is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. IPDM E/R.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press push-button ignition switch under the following conditions to start engine, and wait 1 second or more.
-Selector lever: In the P position
-Brake pedal: Depressed
2.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B210D. .
Is DTC detected?
YES- Replace IPDM E/R. Removal And Installation.
NO- INSPECTION END
