B2108

B2108 STEERING LOCK RELAY

DTC Logic


DTC DETECTION LOGIC

NOTE:
- If DTC B2108 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
IPDM E/R.
- If DTC B2108 is displayed with other DTC, first perform the trouble diagnosis for the other DTC.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press push-button ignition switch under the following conditions and wait 1 second or more.
-Selector lever: In the P position
-Brake pedal: Not depressed
2.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK STEERING LOCK RELAY SIGNAL

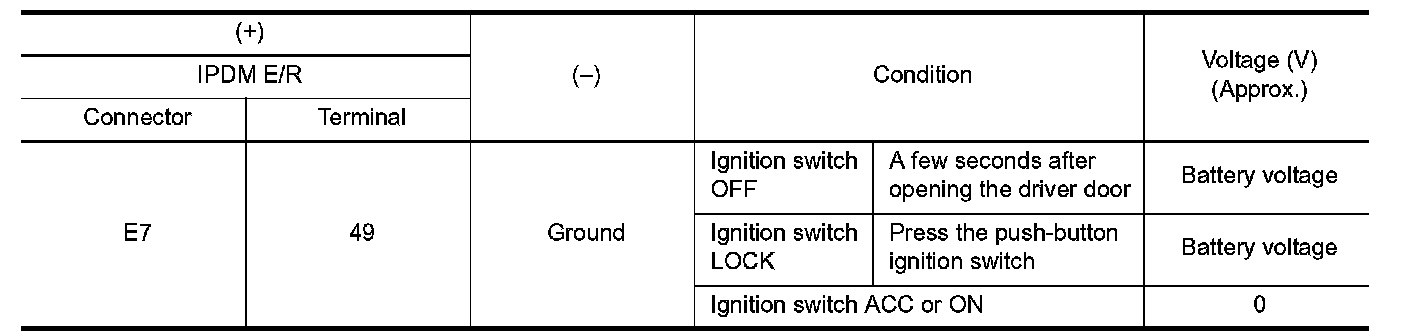

Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R. Removal And Installation.
NO- GO TO 2.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
