B2013

B2013 STEERING LOCK UNIT

DTC Logic

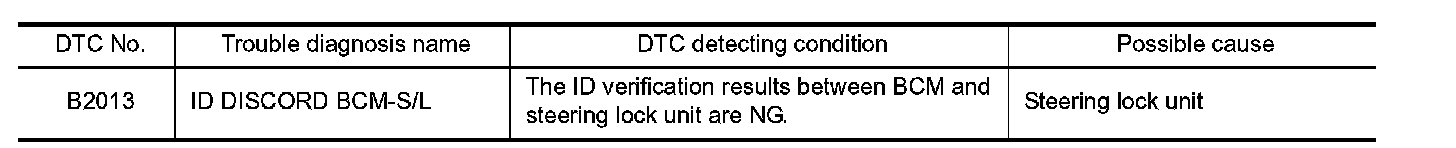

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

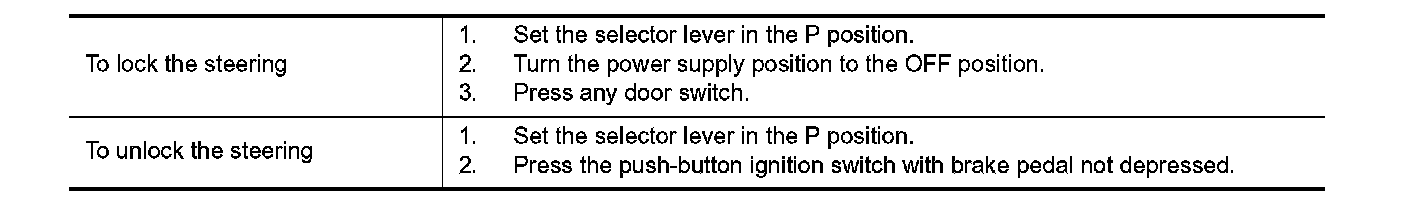

1.Lock the steering.
NOTE:





3.Press the push-button ignition switch.
4.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

Perform initialization of BCM and reregistration of all Intelligent Keys using CONSULT.
Does steering lock operate?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE STEERING LOCK UNIT

1.Replace steering lock unit.
2.Perform the service procedure for steering lock unit replacement. Refer to CONSULT display instruction.
- INSPECTION END
