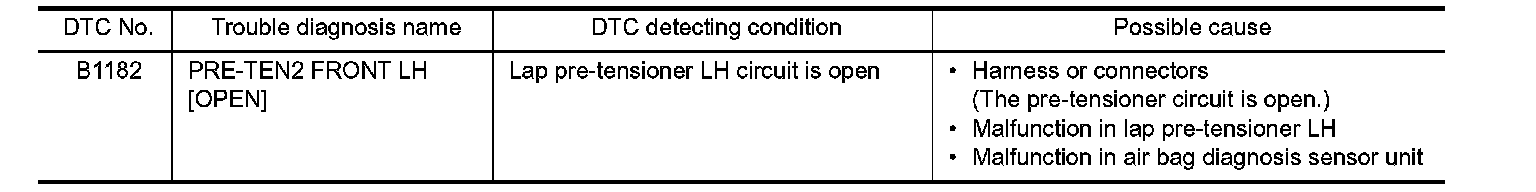

B1182

DTC Logic







DTC CONFIRMATION PROCEDURE


1. CHECK SELF-DIAGNOSTIC RESULT

With CONSULT
1.Turn ignition switch ON.
2.Perform "Self Diagnostic Result" mode of "AIR BAG" using CONSULT.
Without CONSULT
1.Turn ignition switch ON.
2.Check the air bag warning lamp status. On Board Diagnosis Function.
NOTE:
SRS does not enter diagnosis mode if no malfunction is detected in user mode.
Is malfunctioning part detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3
minutes. (To discharge backup capacitor.)
- Never use unspecified tester or other measuring device.

1. CHECK HARNESS CONNECTOR

Check the harness connector.
Is the inspection result normal?
YES- GO TO 2.
NO- Replace harness connector.

2. CHECK WIRING HARNESS

Check the wiring harness externals.
Is the inspection result normal?
YES- GO TO 3.
NO- Replace wiring harness.

3. REPLACE LAP PRE-TENSIONER LH

1.Replace lap pre-tensioner LH. Removal And Installation.
2.Perform DTC confirmation procedure. .
Is DTC detected?
YES- GO TO 4.
NO- INSPECTION END

4. REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

1.Replace air bag diagnosis sensor unit. Removal And Installation.
2.Perform DTC confirmation procedure. .
Is DTC detected?
YES- GO TO 1.
NO- INSPECTION END
