Front Wiper Stop Position Signal Circuit

FRONT WIPER STOP POSITION SIGNAL CIRCUIT

Component Function Check


1. CHECK FRONT WIPER STOP POSITION SIGNAL

CONSULT DATA MONITOR
1.Select "WIP AUTO STOP" of IPDM E/R data monitor item.
2.Operate the front wiper.

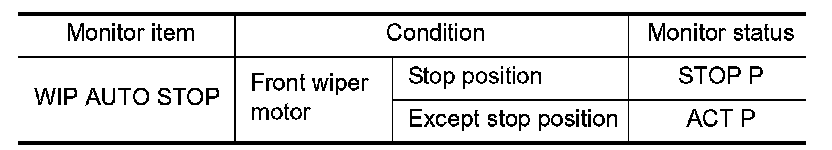

3.With the front wiper operation, check the monitor status.





Is the status of item normal?
YES- Front wiper stop position signal circuit is normal.
NO- .


Diagnosis Procedure


1. CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE

1.Turn the ignition switch OFF.
2.Disconnect front wiper motor connector.
3.Turn the ignition switch ON.

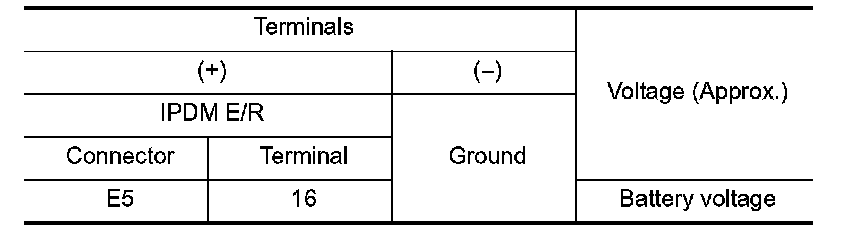

4.Check voltage between IPDM E/R harness connector and ground.





Is the measurement value normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK FRONT WIPER MOTOR SHORT CIRCUIT

1.Turn the ignition switch OFF.
2.Disconnect IPDM E/R connector.

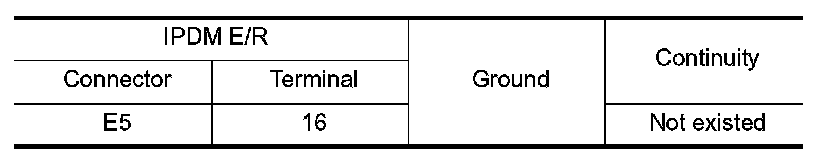

3.Check continuity between IPDM E/R harness connector and ground.





Does continuity exist?
YES- Repair the harnesses or connectors.
NO- Replace IPDM E/R.

3. CHECK FRONT WIPER MOTOR CIRCUIT CONTINUITY

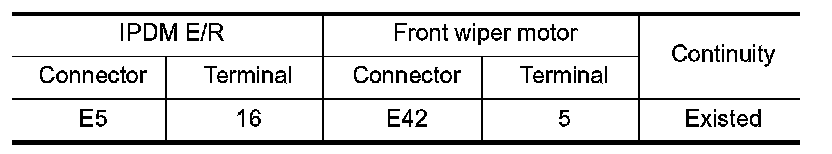

Check continuity between IPDM E/R harness connector and front wiper motor harness connector.





Does continuity exist?
YES- Replace front wiper motor.
NO- Repair the harnesses or connectors.
