Rear Door Window Glass: Service and Repair

DOOR GLASS

Removal and Installation


REMOVAL

1.Remove the door finisher. Removal and Installation.
2.Disconnect the door speaker harness connector.





3.Operate the power window main switch to raise or lower the door window until the glass mounting bolts can be seen.

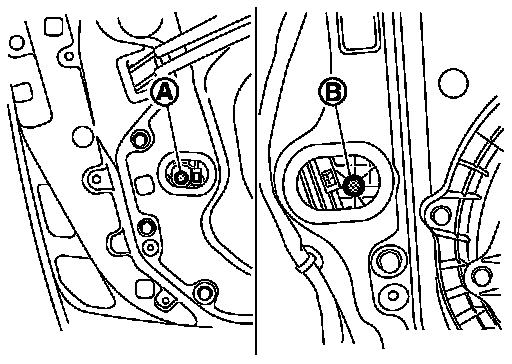

4.Remove the glass mounting bolts (A) and loosen slightly the bolt (B).

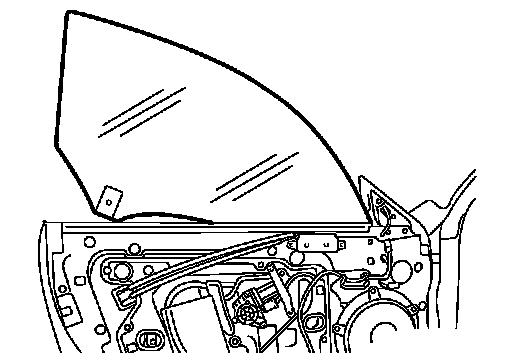

5.Hold securely the door glass and pull it out of the sash to remove the door glass.
NOTE:
Do not raise the glass at the top upper of the door after the door glass is removed.
6.Remove the door mirror assembly. Removal and Installation.
7.Remove the door inside seal.
8.Remove the door glass run.
9.Remove the front lower sash nuts, and then remove the front lower sash.
10.Remove the corner piece bolts, and then remove the corner piece.

INSTALLATION

Install in the reverse order of removal.
