Power Window Main Switch

POWER WINDOW MAIN SWITCH

Fail-Safe


FAIL-SAFE CONTROL

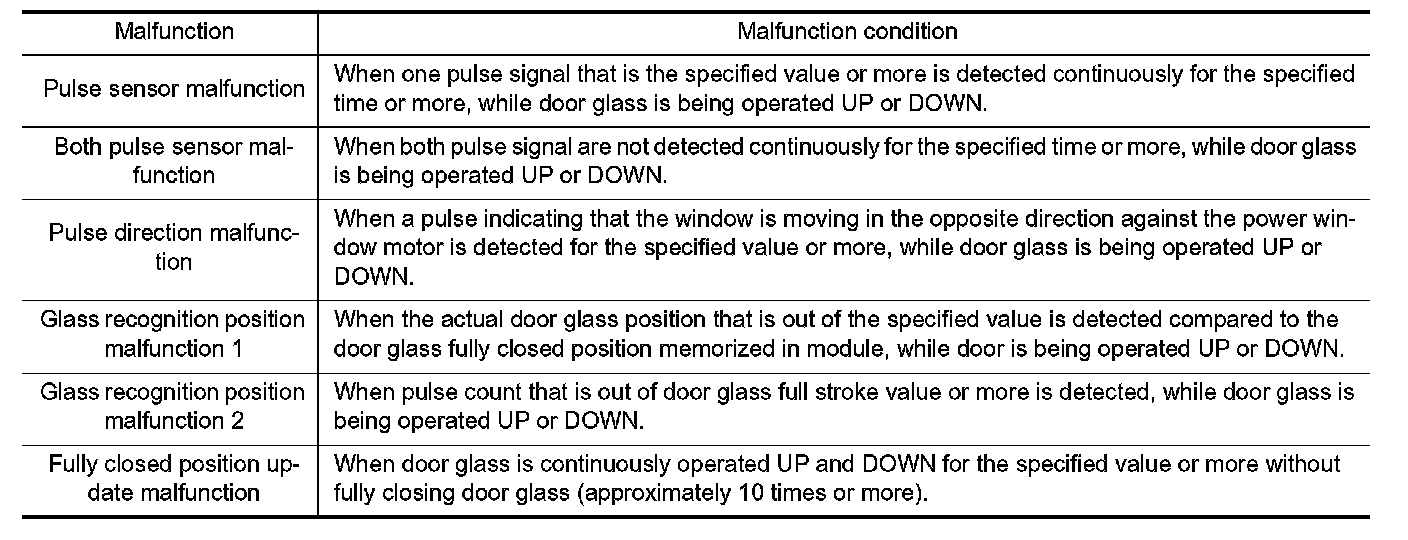

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and direction of door glass. Switches to fail-safe control when a signal that is out of the specified value is detected between the fully closed position and the actual position of the glass.





In fail-safe control, the system changes to a non-initialized condition and the following function do not operate.
- AUTO UP operation
- Anti-pinch function
- Automatic window adjusting function
- Door key cylinder switch power window function
When fail-safe control is activated, perform initializing operation to recover. If a malfunction is detected in power window switch or more, fail-safe control is activated again.
