Home >> Infiniti >> 2012 >> G37x Coupe AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Overhaul >> Rear Final Drive R200V >> Drive Pinion >> M/T >> Exploded View

Exploded View




DRIVE PINION

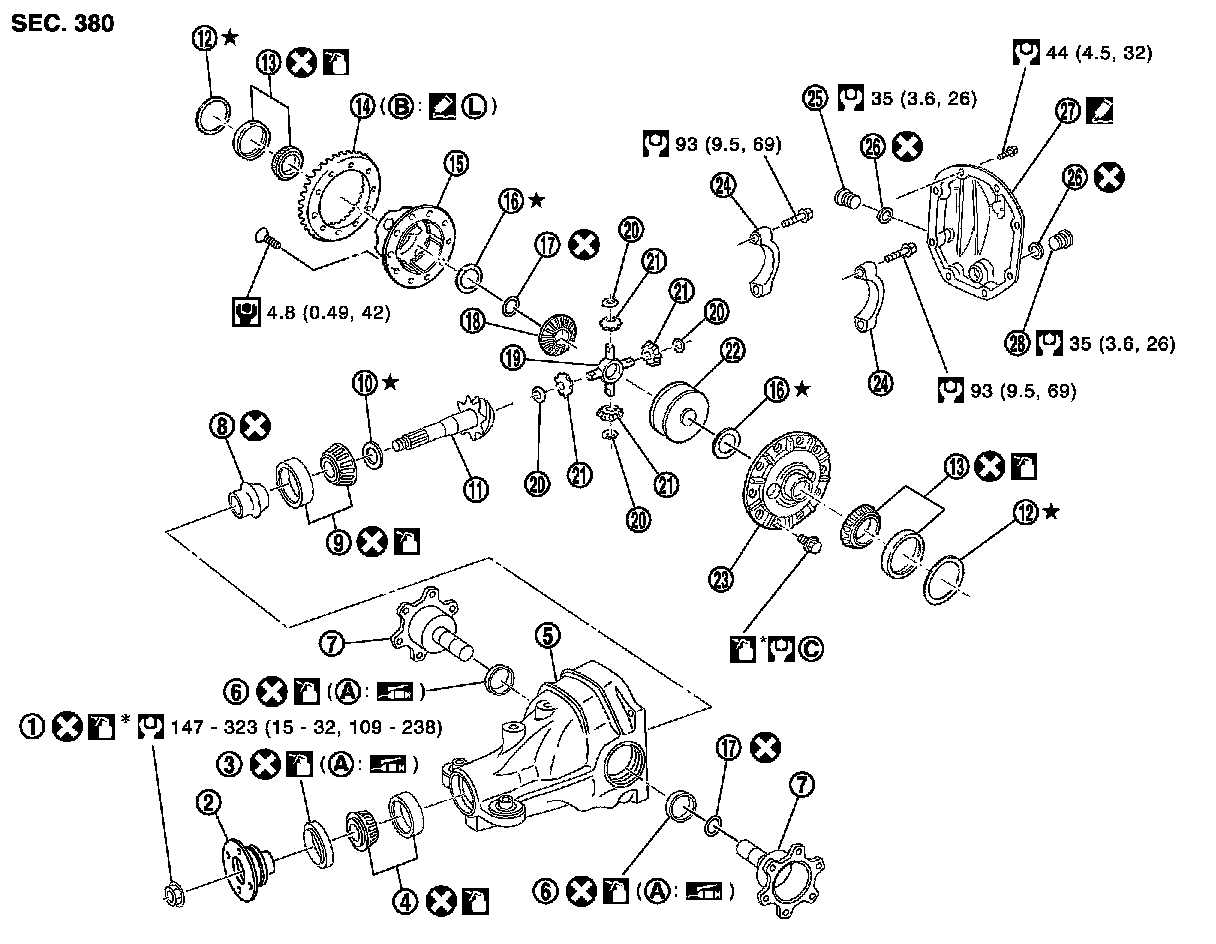

2WD (M/T) : Exploded View
