Selector Lever Position Indicator

SELECTOR LEVER POSITION INDICATOR

Removal and Installation


REMOVAL

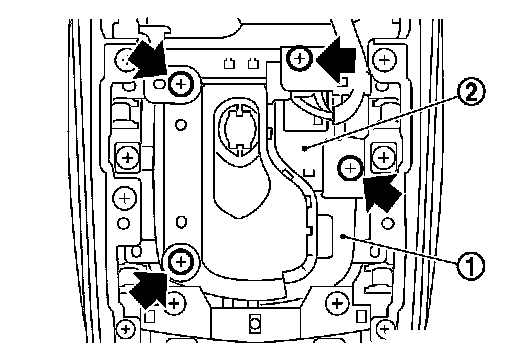

1.Remove console finisher assembly. Exploded View.
2.Remove selector lever position indicator harness from hook of console pocket assembly.





3.Remove insert finisher (1).





4.Remove selector lever position indicator (2).

INSTALLATION

Install in the reverse order of removal.
