4WAS Main Control Unit




4WAS MAIN CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

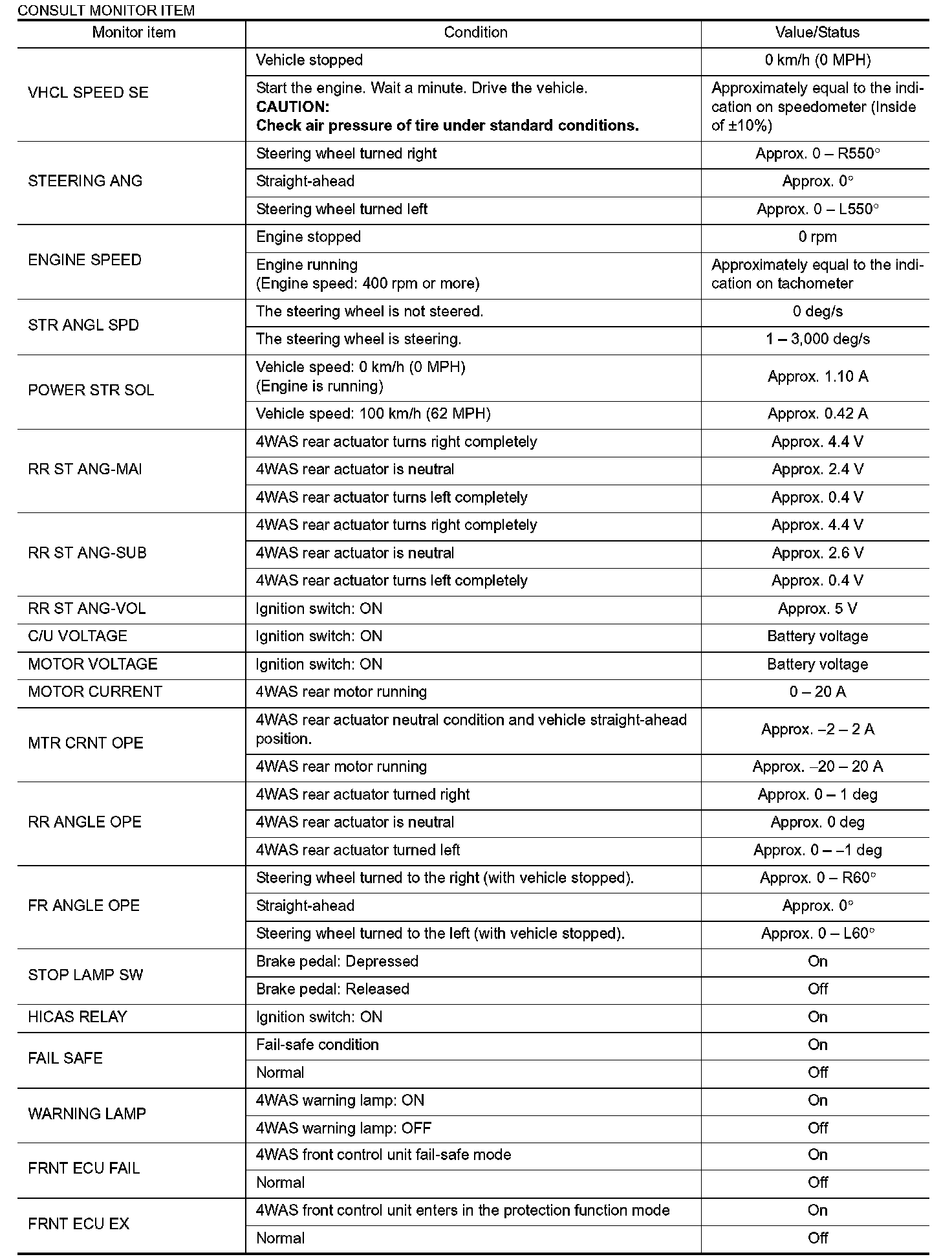

CONSULT MONITOR ITEM

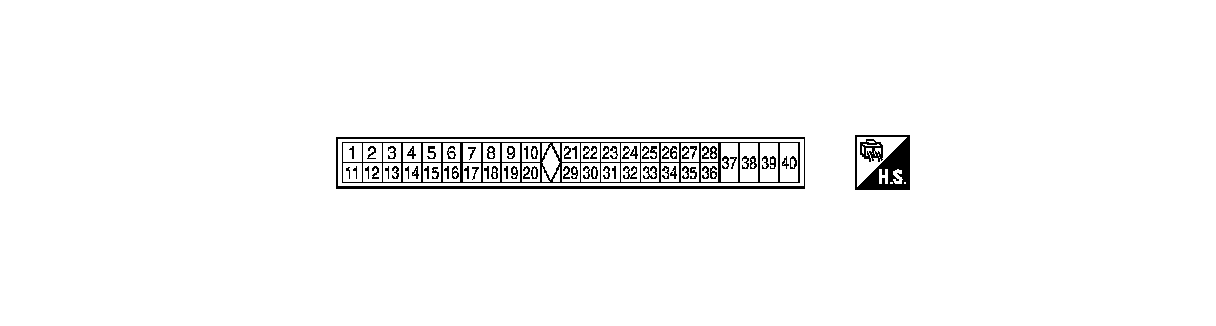

TERMINAL LAYOUT

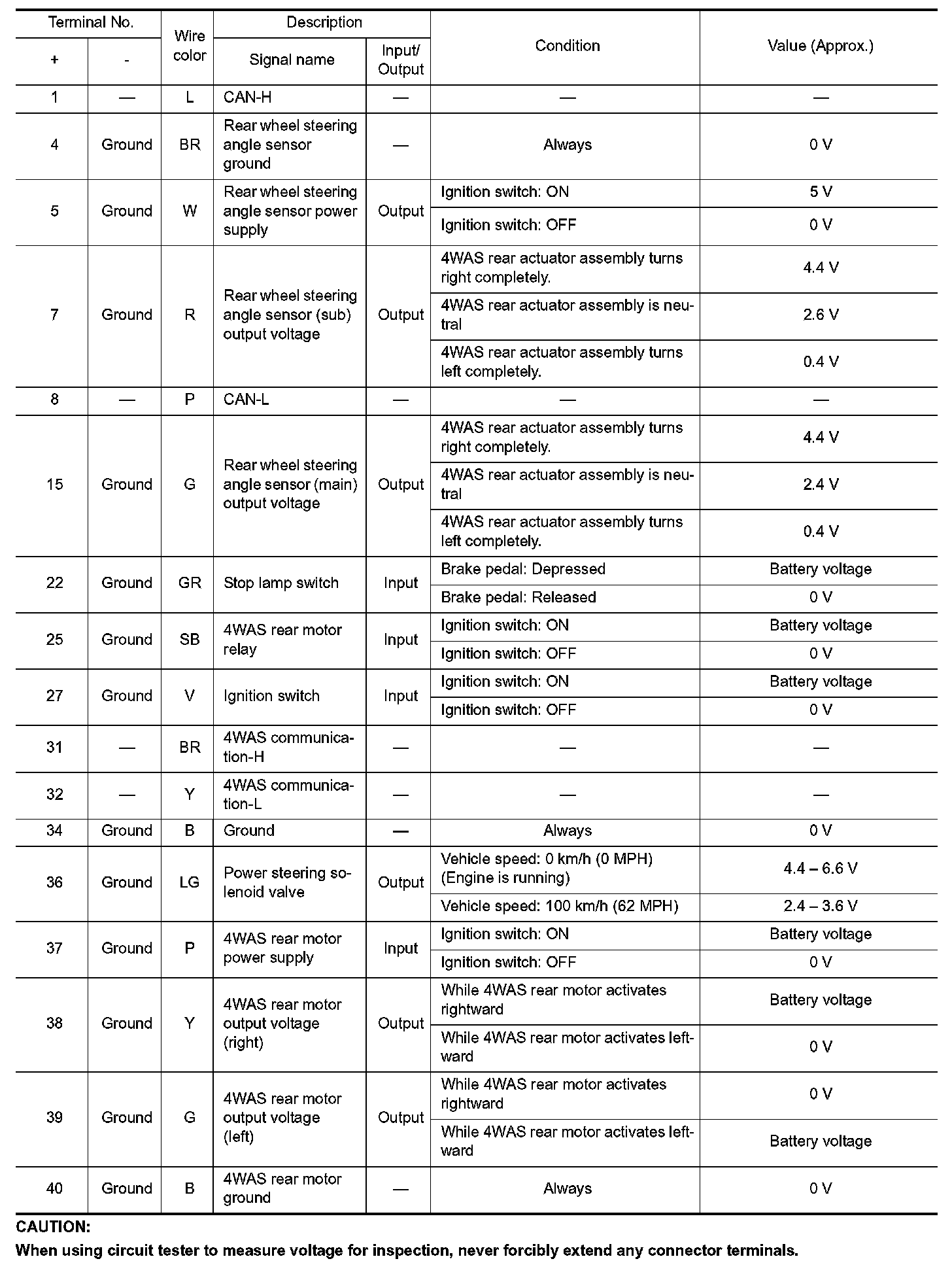

PHYSICAL VALUES
