4WAS Front Control Unit




4WAS FRONT CONTROL UNIT

Reference Value

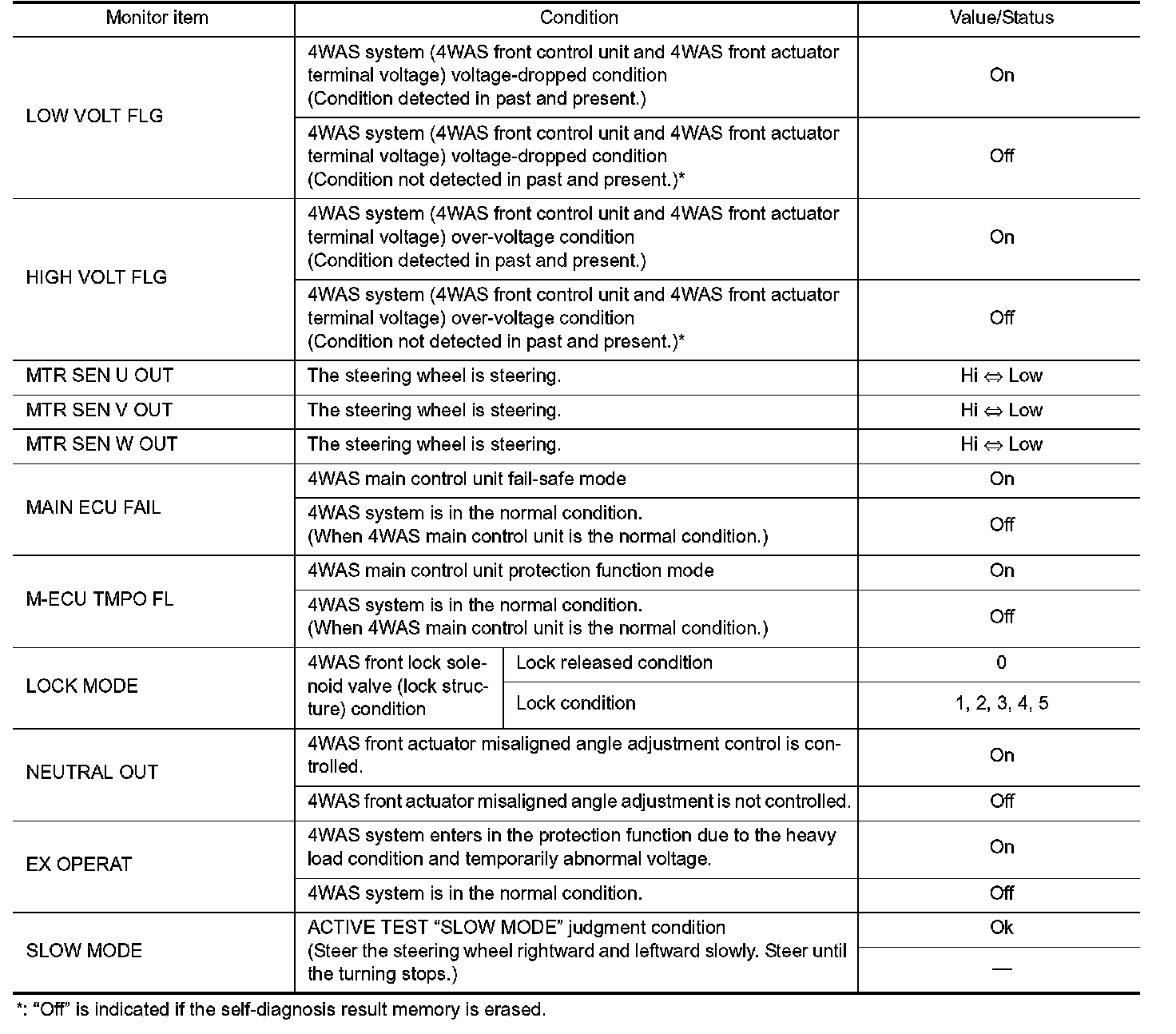

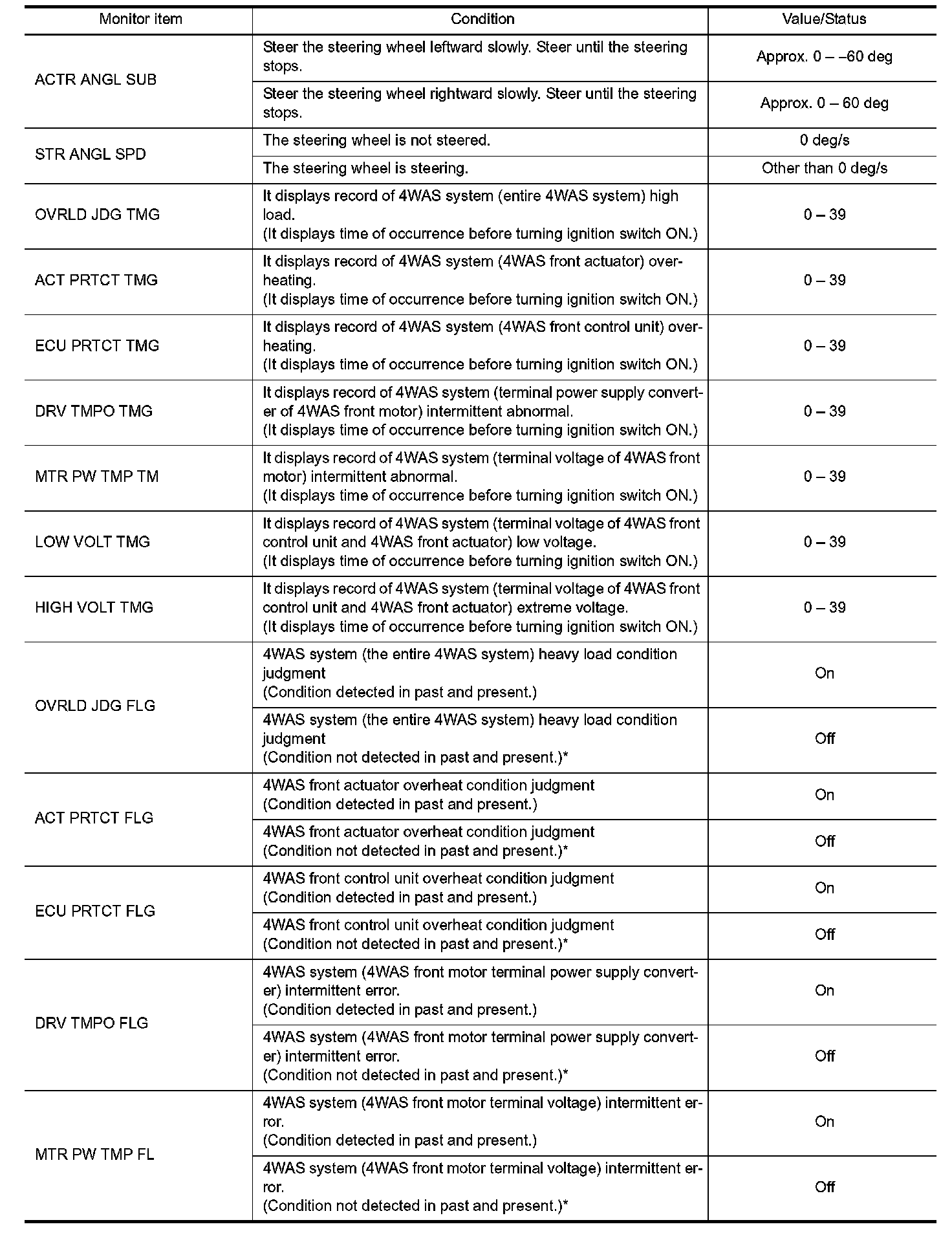

VALUES ON THE DIAGNOSIS TOOL

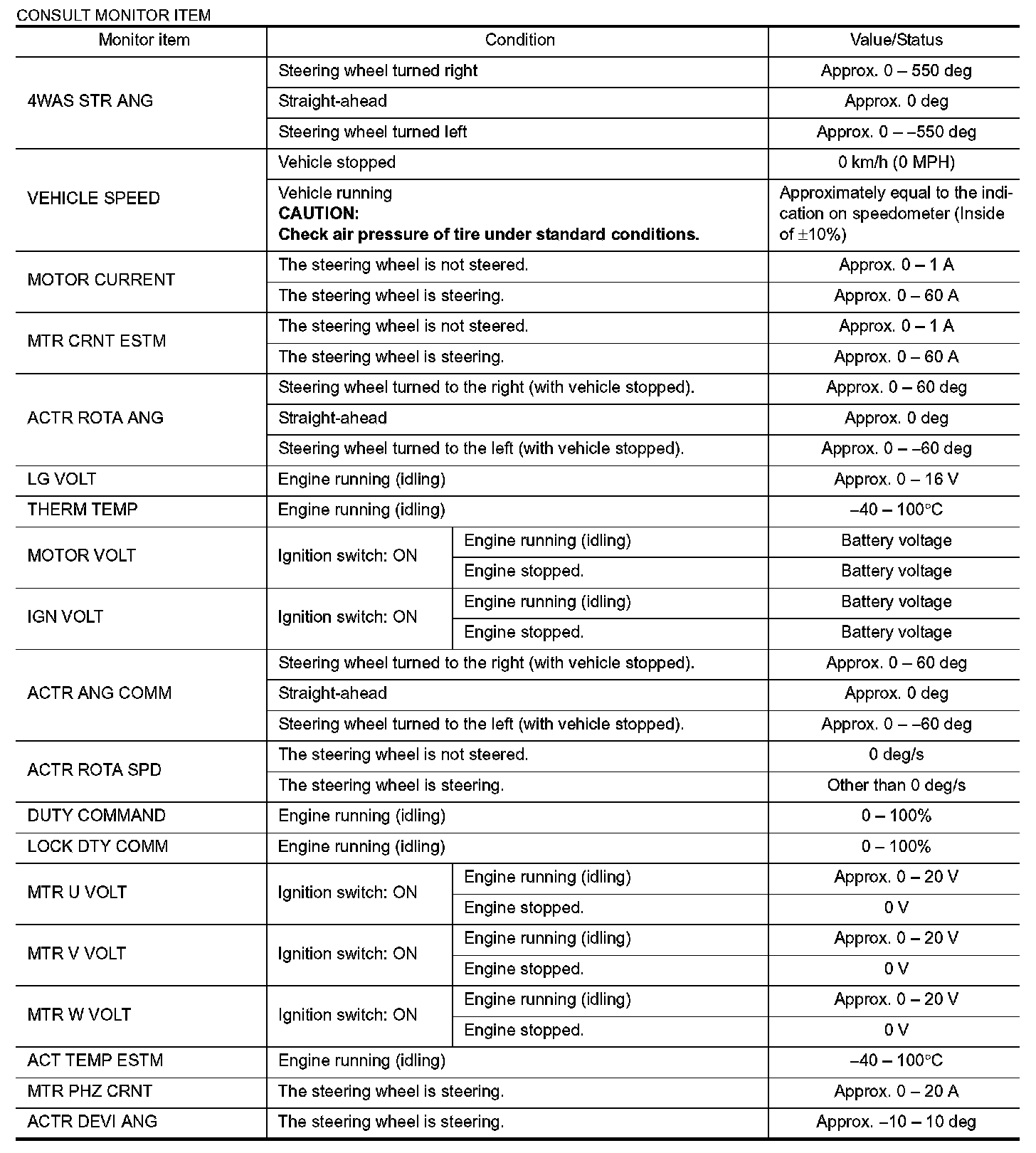

CONSULT MONITOR ITEM

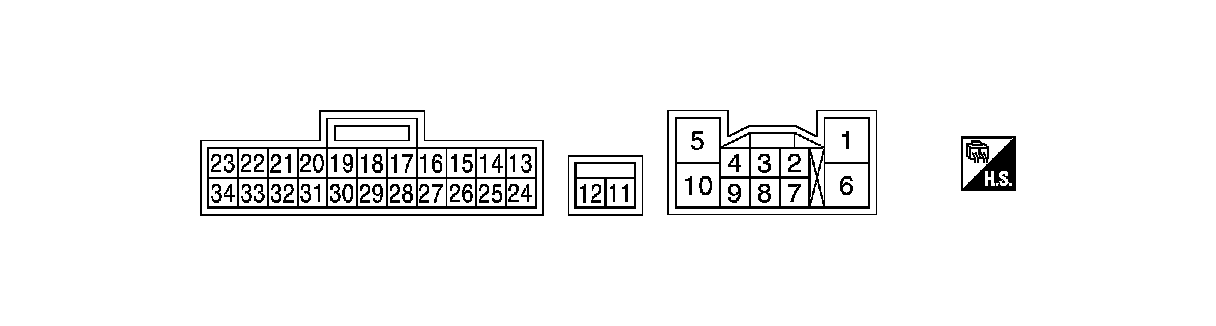

TERMINAL LAYOUT

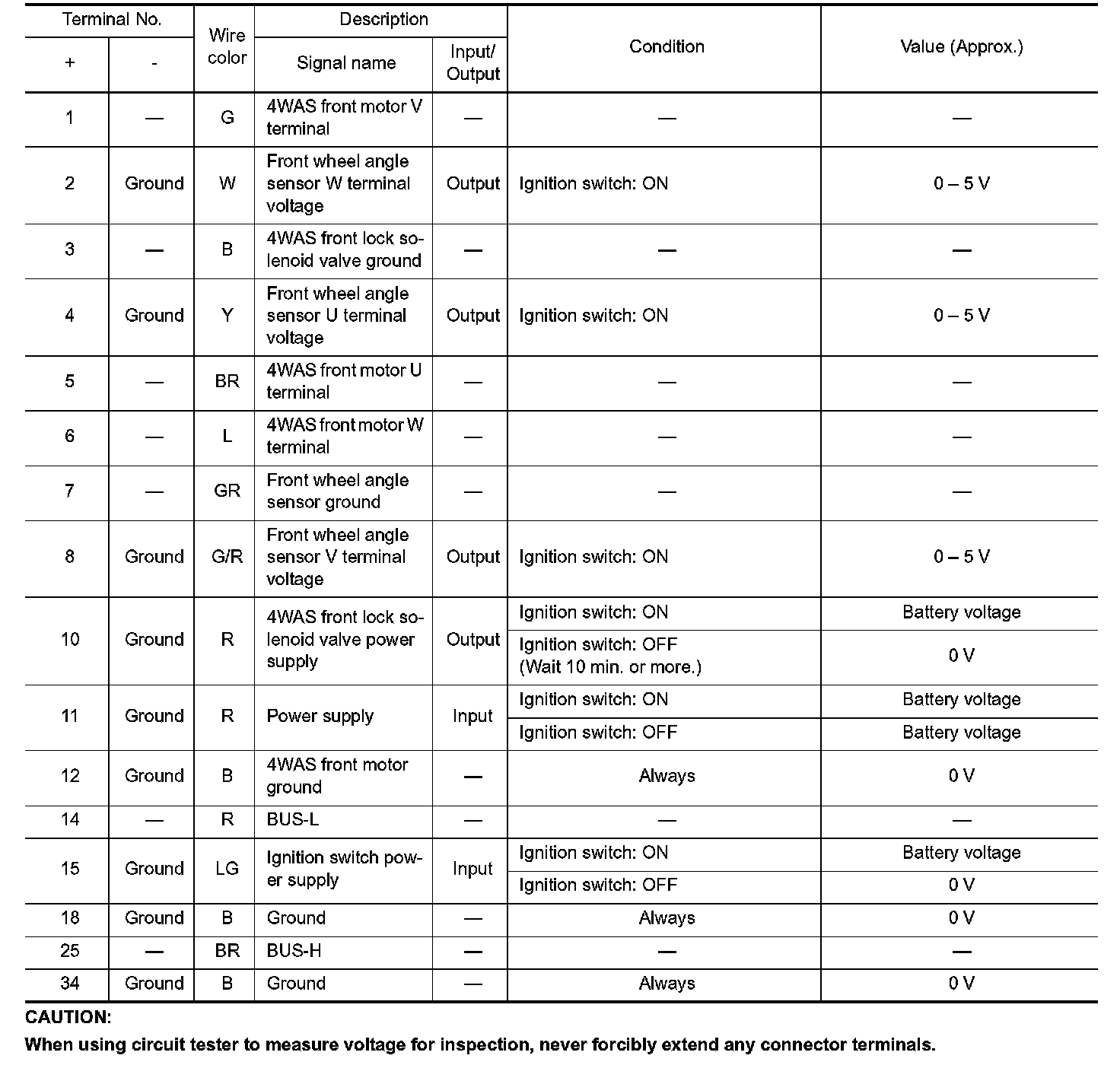

PHYSICAL VALUES
