Component Inspection (4WAS Rear Motor Relay)

POWER SUPPLY AND GROUND CIRCUIT

Component Inspection (4WAS Rear Motor Relay)


1. CHECK 4WAS REAR MOTOR RELAY

1.Turn the ignition switch OFF.
2.Remove 4WAS rear motor relay connector.
3.Apply 12 V to 4WAS rear motor relay connector No. 1 terminal and No. 2 terminal.

CAUTION:
- Never make the terminals short.
- Connect the fuse between the terminals when applying the voltage.

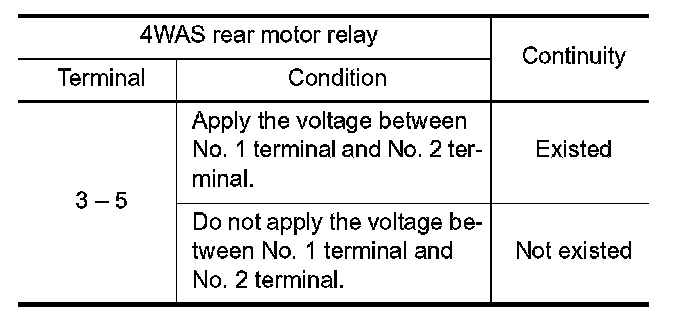

4.Check the continuity between 4WAS rear motor relay connector terminals.

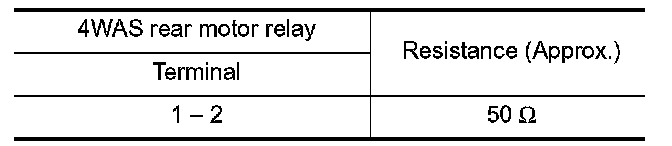

5.Check the resistance between 4WAS rear motor relay connector terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace 4WAS rear motor relay.
